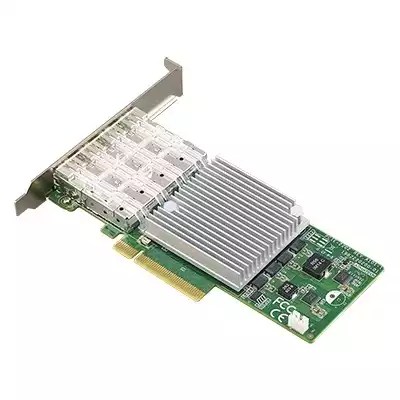

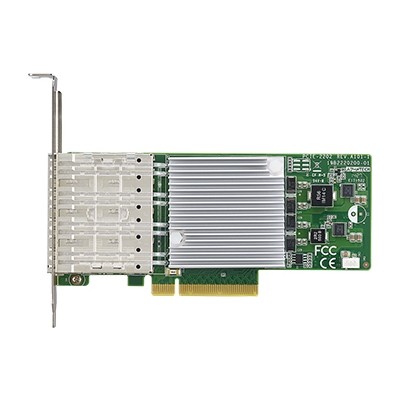

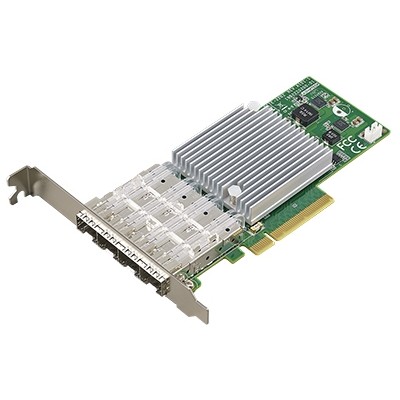

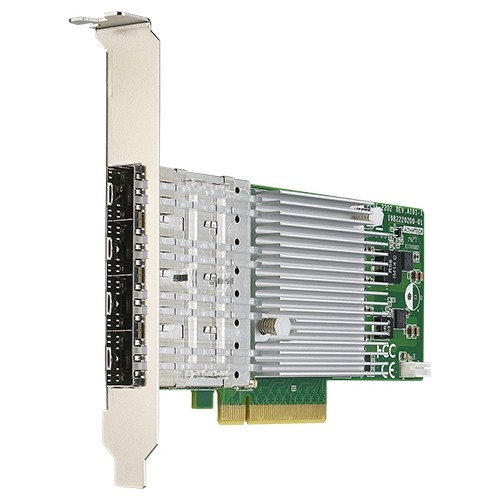

PCIE-2230NP-00A1E

4-ports 10G fiber NIC (SFP+) w Intel XL710

Pro zobrazení cen se prosím přihlaste.

Porovnat
Číslo zboží: GAX0003997 Produktové číslo: PCIE-2230NP-00A1EKategorie: Výrobce: Advantech
Poptat produkt
Quad Port Fiber 10GbE Ethernet PCI Express Server Adapter with Intel(R) XL710-BM1

Advantech’s PCIE-2230 is a low-profile quad port 10GbE Ethernet PCI Express server adapter based on the Intel(R) Ethernet Controller XL710-BM1. By supporting a PCI Express gen. 3 x8 host interface, this adapter provides sufficient bandwidth for line rate traffic on all four 10GbE ports. Quad SFP ports can be configured to support a variety of optical transceivers such as 10GBASE-SR and 10GBASE-LR optical modules as well as direct attach cables. Improved support for virtualization, including VMDq, SR-IOV and VEB make the PCIE-2230 a perfect fit for virtualized environments and applications with network overlays. Packet filtering, load balancing and protocol offload capabilities further enhance efficiency by saving valuable processing time on the host. PCIE-2230 is an ideal network interface solution for multi-tenant environments and Network Function Virtualization as well as networking applications such as WAN optimization and cyber security.

Vlastnosti:
  • 1 x Intel(R) Ethernet Controller XL710-BM1
  • 4 x 10GbE SFP+ ports
  • Supports 10GBASE-SR and 10GBASE-LR transceivers
  • PCIe gen. 3 x8 host interface
  • Supports SR-IOV based virtualization
  • Advanced virtualization and network overlay support
  • Low profile and full height form factors
Hmotnost0,125 kg
Rozměry206 × 171 × 58 mm
Výrobce

Advantech

Počet kanálů

4

Rozhraní

PCIe

Typ vstupů

Žádné

Typ výstupů

Žádné

Datasheet

Stáhnout datasheet:
