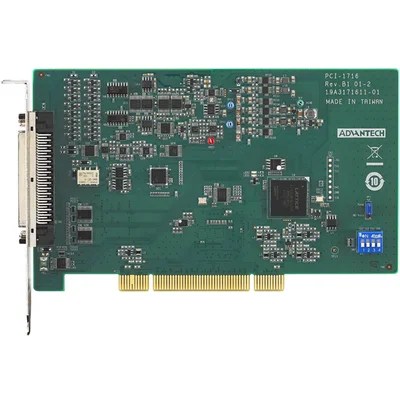

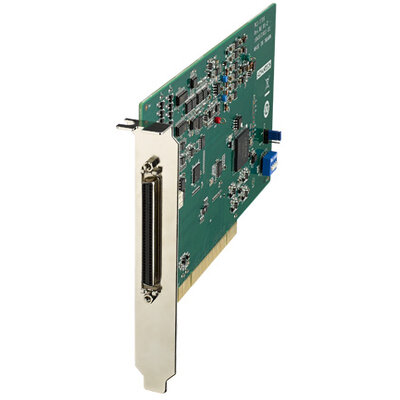

PCI-1716-BE

500k, 16bit High-resolution Multifunction Card

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: GAX0008647 Produktové číslo: PCI-1716-BEKategorie: Výrobce: Advantech
Poptat produkt
500kS/s, 16-bit, 16-ch Multifunction PCI Card

PCI-1716 and PCI-1716L are both 16 channels multi-function DAQ card featuring a 500kS/s 16-bit A/D converter, with 8K sample FIFO buffer for A/D. They also have two 16-bit D/A output channels(PCI-1716 only), 16 digital input/output channels, and one 10 MHz 32-bit counter channel.

Vlastnosti:
  • 16 single-ended or 8 differential or a combination of analog inputs
  • 16-bit A/D converter, with up to 500 kHz sampling rate
  • FIFO memory (8,192 samples)
  • 2 analog output channels
  • 16-ch digital input and 16-ch digital output
  • Auto-calibration
  • PCI-Bus mastering data transfer
  • BoardID™ switch
Hmotnost0,41 kg
Rozměry750 × 190 × 535 mm
Výrobce

Advantech

Počet kanálů

16

Rozhraní

PCI

Typ vstupů

Digitální

Typ výstupů

Digitální

Datasheet

Stáhnout datasheet:
