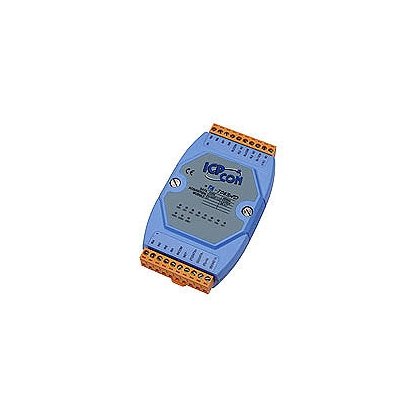

The I-7063A module provides 8 digital input channels and 3 AC SSR(Solid State Relay) output channels, and the I-7065A provides 4 digital input channels and 5 AC SSR output channels. All digital input channels can be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. In comparison to electromechanical relays, SSR technology provides a faster response time and greater electrical endurance. The integration of AC SSR technology also eliminates potential for arcing, bounce, and switching noise. The I-7063AD provides 11 LED indicators and the I-7065AD provides 9 LED indicators that can be used to monitor the status of the digital input and SSR output. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.
Features:
- 8 Digital Input channels and 3 AC SSR Output channels
- Form A AC Solid State Relay Output
- No Arcing, No Bounce, and No Switching Noise
- Sink- and Source-type for Digital Input
- Digital Input Channels can be used as 16-bit Counters
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Display |
| Type |
I/O LED Indicator |
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
+2 kV for Power Line |
| ESD (IEC 61000-4-2) |
+4 kV Contact for each Terminal
+8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
11 x Digital Input/Relay Output |
| Digital Input/Counter |
| Channels |
8 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| Wet Contact, ON Voltage Level |
+1 VDC Max. |
| Wet Contact, OFF Voltage Level |
+4 ~ 30 VDC |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Input Impedance |
3 k? |
| Overvoltage Protection |
+35 VDC |
| Relay Output |
| Channels |
3 (Form A) |
| Type |
AC-SSR |
| Contact Rating |
Form A:
24 ~ 265 VAC @ 1A
5 A @ 30 VDC |
| Leakage Current |
1.5 mA |
| Operate Time |
1/2 cycle + 1 ms |
| Release Time |
1/2 cycle + 1 ms |
| Electrical Endurance |
Long Life, No Arcing, No Bounce, No Switching Noise |
| Surge Strength |
2500 VDC |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.0 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
