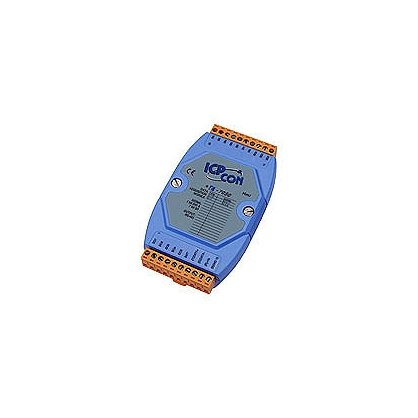

The I-7050 series of modules offers channels for digital input and 8 channels for digital output, each of which are non-isolated. The I-7050 supports sink-type output using an NPN open collector, and source-type input. All input channels are able to be used as 16-bit counters. There are also options to enable both power-on and safe values. The I-7050D has 15 LED indicators that can be used to monitor channel status. The M-7050 has the same hardware specifications as the I-7050, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
Features:
- Interface: RS-485
- Protocol: DCON
- 7-channel non isolated digital inputs (wet contact) with 16 bit counter
- 8-channel non isolated digital output
- Dual Watchdog
- DIN-Rail Mountable
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| LED Indicators |
| Status |
1 x Power and Communication |
| Digital Input/Counter |
| Channels |
7 |
| Type |
Dry Contact, Sink
Wet Contact, Sink |
| Wet Contact, ON Voltage Level |
+4 ~ 30 VDC |
| Wet Contact, OFF Voltage Level |
+1 VDC Max. |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Input Impedance |
100 K? |
| Digital Output |
| Channels |
8 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Source |
| Load Voltage |
+3.5 ~ 30 VDC |
| Max. Load Current |
50 mA/Channel |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.5 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
