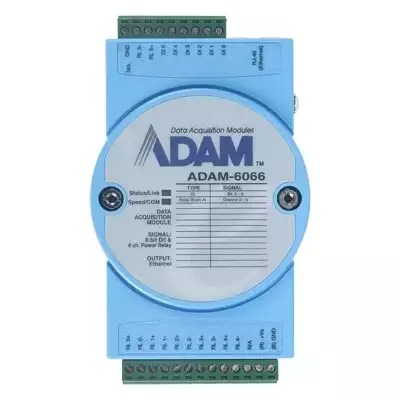

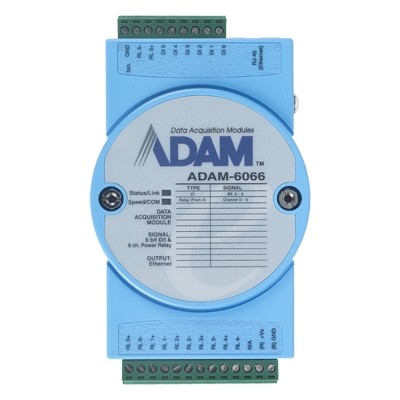

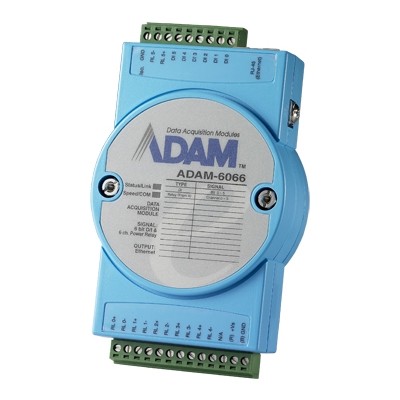

ADAM-6066-D

6 DO/6 DI Power Relay Module

Pro zobrazení cen se prosím přihlaste.

Externí sklad: 134 ks

- +
Porovnat
Porovnat
Číslo zboží: GAX0000858 Produktové číslo: ADAM-6066-DKategorie: Výrobce: Advantech
Poptat produkt
6-ch Digital Input and 6-ch Power Relay Modbus TCP Module

ADAM-6000 accomplishes the integration of automation and enterprise systems easily through internet technology, so that users can avoid changing the entire architecture of the control system and even remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by peer-to-peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation. Instead of having additional controllers or programming, system configurations can be done in an extremely short time with the easy-to-use and intuitive graphic utility.

Vlastnosti:
  • 6-ch DI, 6-ch RL, Ethernet-based smart I/O
  • Remote monitoring and control with mobile devices
  • Group configuration capability for multiple module setup
  • Flexible user-defined Modbus address
  • Intelligent control ability by Peer-to-Peer and GCL function
  • Active I/O message by data stream or event trigger function
  • Multiple protocol support: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, MQTT
  • Web language support: XML, HTML 5, Java Script
Hmotnost0,2 kg
Rozměry150 × 85 × 51 mm
Výrobce

Advantech

Konektor vstupů

Svorkovnice

Konektor výstupů

Svorkovnice

Počet kanálů

6

Typ vstupů

Digitální

Typ výstupů

Relé

Datasheet

Stáhnout datasheet:

3D Model

3D model se zobrazí v novém okně. Pokud se Vám okno s 3D modelem neobjeví, zkontrolujte prosím, zda nemáte nastaveno automatické blokování vyskakovacích oken. Toto nastavení obvykle naleznete v pravé části adresního řádku.
