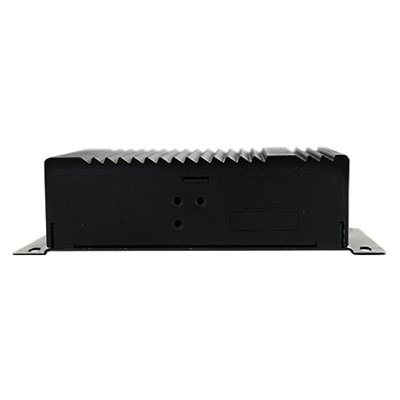

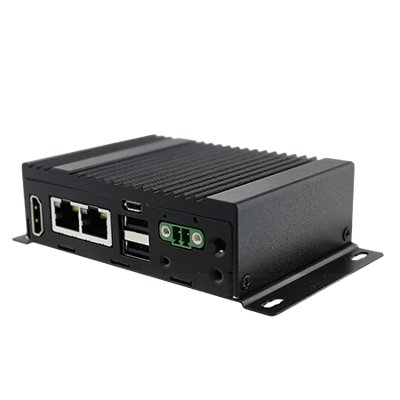

A53 Quad-core Industrial IoT Gateway
Vlastnosti:
- A53 Quad-core 2.0 GHz
- Fanless cooling system Industrial IoT Gateway
- 4GB LPDDR4, 32GB eMMC
- Compact size 100 x 70 x 31 mm (w/o mounting bracket)
- Various mounting options: desk, wall, VESA, DINRail
- Microsoft Azure Certified for IoT
- Support Android or Linux operating system
System Specification
Processor | ARM A53 (Quad Core 2.0GHz) |
Memory | 4GB LPDDR4 |
Storage | eMMC: Onboard 32 GB |
Security | SOTI MobiControl Compliance |
Operating System | Android 11 (Upgradeable to Android 13) Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu Server 22.04 (Optional) |
WLAN | Support (Optional) |
BT | Support for Android (Optional) |
WWAN | 4G/LTE (Optional) |
Expansion Port | EACWSLT-231 3-port RS232/422/485 w/ isolation EACWSLT-232 16-Channel Digital I/O w/ isolation EACWSLT-233 2-port CANBUS w/ isolation EACWLST-234 3-port USB 2.0 EACWLST-235 2-port RS232/422/485 w/ isolation |
Mechanical
Dimension | 100 (W) x 70 (H) x 31(D) mm(One layer) 100 (W) x 70 (H) x 61(D) mm(Double layer) |
Weight | 0.4 kg (One layer), 0.5 kg (Double layer) |
Mounting | Desk Mounting & Wall Mounting VESA Mounting (Optional) DIN-Rail Mounting (Optional) |
Cooling System | Fanless design |
Environment
Operating Humidity | 30% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 55°C |
Storage Temperature | -15°C to 70°C |
Shock | Operating, IEC 60068-2-27 |
Vibration | Operating, IEC 60068-2-64 |
IP rating | IP30 |
Certification
Certification | CE, FCC Microsoft Azure Certified for IoT |

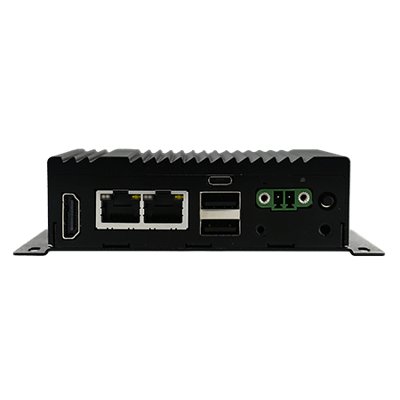

IO Ports
Power Input | 1 x 9~36V DC, 2-Pin Terminal Block |
USB Port | 2 x USB2.0 (Type-A) 1 x USB2.0 OTG (Micro USB), support Android Debug Bridge (adb) |
Video | 1 x HDMI (Up to 1080p/30Hz) (Optional) |
Expansion Port | 1 x M.2 slot 2 x USB Wafer |
LAN | 2 x Giga LAN RJ45 Connector for Linux 1 x Giga LAN RJ45 Connector for Android |
Indicator | 1 x LED Indicator for power |
Control
Button | 1 x Power Button 1 x Reset Button |
Accessory
Accessory | Terminal Block 2 pin to 2.5Ø Female Adapter Cable Quick Start Guide Open Wire Cable WLAN External Antenna*2 (For WLAN sku) WWAN External Antenna*2 (For WWAN sku) BT External Antenna*1 (For BT sku) |
Optional Accessory | AC to DC Adapter 12V/36W (Optional) VESA Mount Kit (Optional) DIN Rail Mount Kit (Optional) Micro USB to Type A Cable (Optional) |
Power
Power Rating | 9V~36V DC, 2-Pin Terminal Block |
Adapter | 12V 36W (Optional) |
Ordering Information
Option | EACIM20-100 Standard SKU EACIM20-101 with WLAN and BT SKU (Optional) EACIM20-102 with WWAN SKU (Optional) EACIM20-103 with WLAN, BT and WWAN SKU (Optional) EACWSLT-231 3-port RS232/422/485 w/ isolation (Optional) EACWSLT-232 16-Channel Digital I/O w/ isolation (Optional) EACWSLT-233 2-port CANBUS w/ isolation (Optional) EACWSLT-234 4-port USB 2.0 (Optional) EACWSLT-235 2-port RS232/422/485 w/ isolation (Optional) |
