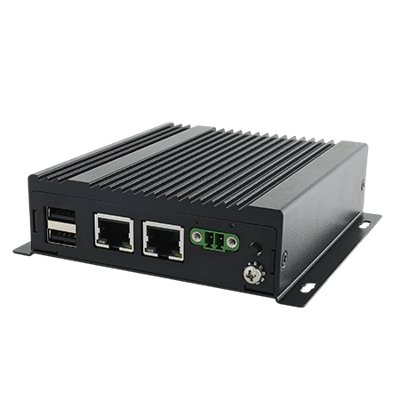

EAC Mini IoT Gateway with Intel® Celeron® N3350
Vlastnosti:
- Intel® Apollo Lake N3350 1.1 GHz IoT gateway
- Fanless cooling system
- Compact size 100 x 115 x 31 mm (w/o mounting bracket)
- USB type-c port (Alt Mode, output Max 15W)
- Suitable for smart factory applications
System Specification
| Processor | Intel Celeron N3350 1.1GHz (up to 2.4GHz) Intel Pentium N4200 1.1GHz (up to 2.5GHz) (Optional) |
| Memory | 4GB LPDDR3 |
| Storage | eMMC: Onboard 64 GB mSATA SSD 128GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Mechanical
| Dimension | 100 x 115 x 31 mm |
| Weight | 0.8 kg |
| Mounting | Desk Mounting and Wall Mounting VESA Mounting (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 30% to 90% (non-condensing) |
| Operating Temperature | 0~55°C |
| Storage Temperature | -15~70°C |
| Shock | Operating, IEC 60068-2-27 |
| Vibration | Operating, IEC 60068-2-64 |
| IP rating | IP30 |
Certification
| Certification | CE, FCC |

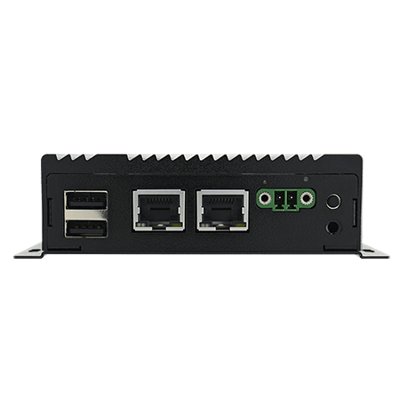

IO Ports
| Power Input | 1 x 9~36V DC, 2-Pin Terminal Block |

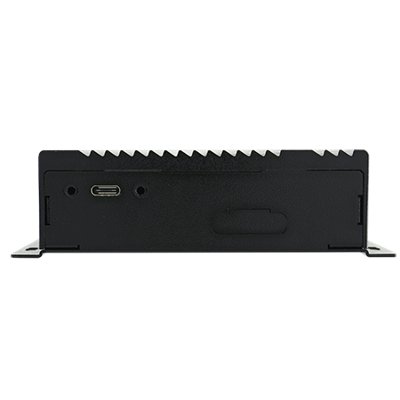

| USB Port | 2 x USB2.0 (Type-A) 1 x USB Type-C[Alt Mode]： -Display Port A/V output(Support max resolution 3840 x 2160@60Hz) -USB data -Power Delivery up to 15W(5V/3A) |
| Expansion Port | mPCIe: 1 x Full-size mPCIe slot |
| LAN | 2 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power |
| mini PCIe | 1 x Mini PCIE |
Control
| Button | 1 x Power Button 1 x Reset Button |
Accessory
| Accessory | Quick Start Guide Terminal Block 2 pin to 2.5Ø Female Adapter Cable Open Wire Cable with terminal block 2 pin connector WLAN External Antenna (For EACIL21-101-A464) VESA Mount Kit (Optional) AC to DC Adapter 12V/36W (Optional) USB Type-C male Cable (Optional) Single-side Lockable USB Type-C Cable (Optional) Dual-side Lockable USB Type-C Cable (Optional) |
Power
| Power Rating | 9V~36V DC, 2-Pin Terminal Block |
| Adapter | 12V 36W |
