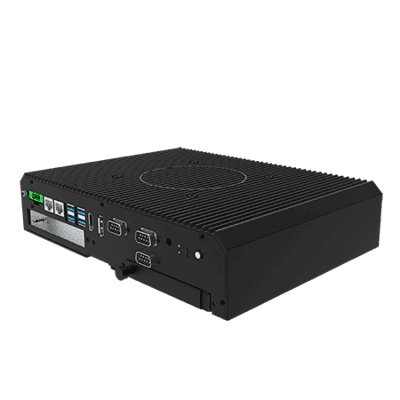

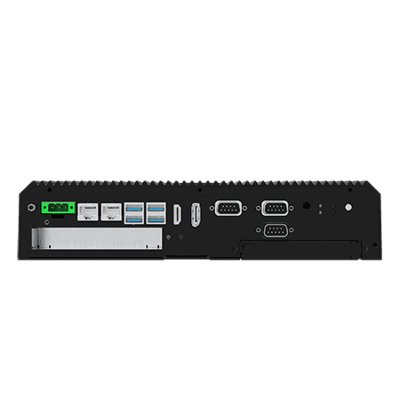

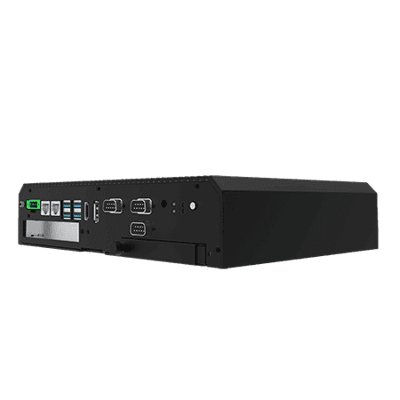

Intel® Core™ i5-1135G7 CID2 M Series Box PC
Vlastnosti:
- Intel® Tiger Lake UP3 Core™ i5-1135G7
- Multi Video Output , HDMI/Display Port, Intel® Core™ i5 C1D2 Box PC
- Auto detection of the connected display, No settings necessary
- Quick & Easy Replaceable Hard Disk Design, No Tools required
- Support wide range 9-29V DC input
- Optional with Modular front Display as a Panel PC
- Expansion slot for PCIex4
- Class 1, Division 2, ATEX Grade zone 2 and IECEx certified for hazardous area applications
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
Expansion Port | Modular Design for easy service in the field |
Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
Memory | 2 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
Storage | 1 x M.2 2280 NVMe SSD, 128GB up to 512GB 1 x 2.5" Removable 256GB SSD up to 512GB (Optional) |
Ethernet controller | Intel® Ethernet Controller I211-AT + Intel® Ethernet Connection I219-LM |
Security | Trusted Platform Module (TPM) 2.0 |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) |
Mechanical
Dimension | 276 x 207 x 60 mm |
Mounting | VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fanless design |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
Certification
Certification | CE, FCC Class 1, Division 2, Group A, B, C, D, T5 IECEx Ex ec IIC T4 Gc Compliance with ATEX grade zone 2 |
IO Ports
Power Input | 1 x 9~29V DC, 3-Pin Terminal Block |
USB Port | 4 x USB 3.2 Gen.1 (Type-A) |
Serial Port | 2 x RS232/422/485 (Default RS232) 1 x RS232 |
Video | 1 x DP1.4 1 x HDMI 2.0 (Optional) |
Audio | 1 x Audio Combo Connector (Mic in / Line Out) |
Expansion Port | 1 x mPCIe slot 1 x PCIe x16 slot (x4 signal)(module max size:180x121mm) 1 x M.2 2230 Key E slot for WiFi 1 x M.2 2280 Key M slot for NVMe SSD Swappable 2.5” HDD/SSD Bay Slot |
LAN | 2 x Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for storage |
Control
Button | 1 x Power Button with LED Indicator 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord Open Wire Cable with terminal block connector VESA screws |
Power
Power Rating | 9V~29V DC with protection fuse |
Adapter | 12V 84W |
Consumption | 45W~55W |
