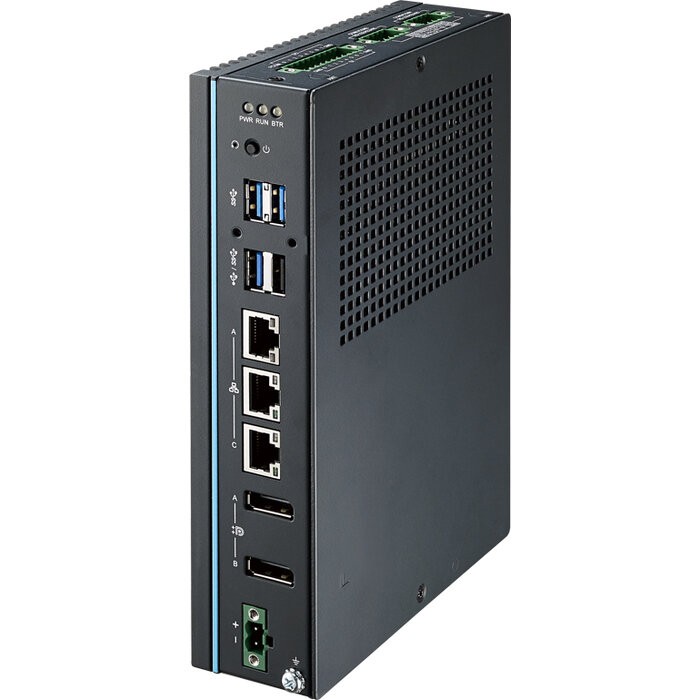

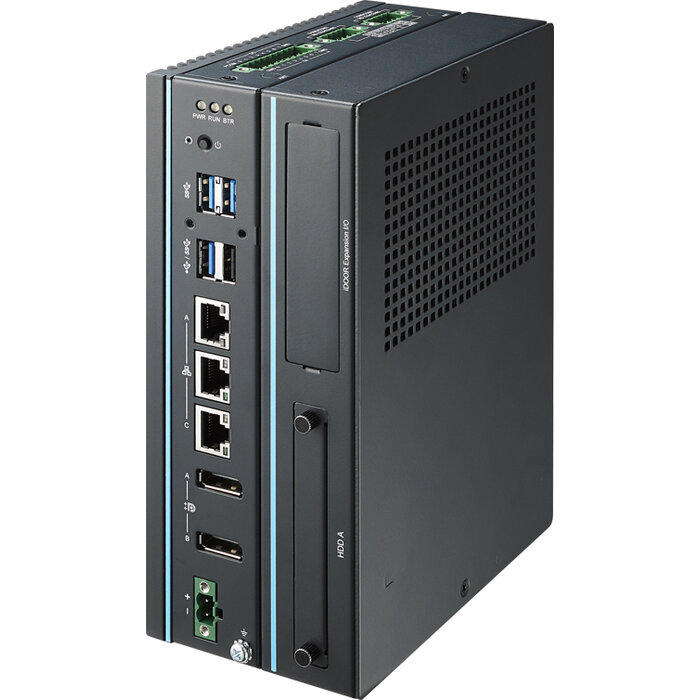

Advantech’s UNO-100 series are DIN-rail integrated controllers that feature a modular design for flexible configuration according to specific usage requirements. UNO-148 is a high-performance DIN-rail IoT controller supports TSN feature to fulfill time synchronized application.
Vlastnosti:
- General operation temperature range (-20~60°C / -4~140°F)
- Port isolation for 8 x DI, 8 x DO, 4 x COM
- Supports M.2 M key 2280 NVMe SSD Storage
- Supports M.2 B+M key 2242 storage and 3042/3052 cellular modules
- Supports M.2 E Key 2230 Wifi modules
- Supports Time-Sensitive Network(TSN) technology
- Remote out-of-band (OOB) power management with Advantech iBMC technology
- Onboard TPM 2.0 to provide hardware security
- Compliant with IEC 61010-1 safety requirements
Hmotnost | 1,2 kg |
---|---|
Rozměry | 200 × 140 × 45 mm |
Výrobce | Advantech |
DisplayPort | 2 |
Gigabit LAN | 3 |
Procesor | Core i3 |
RS-232/422/485 (kombinovaný) | 4 |
USB 2.0 | 2 |
USB 3.0 | 2 |
