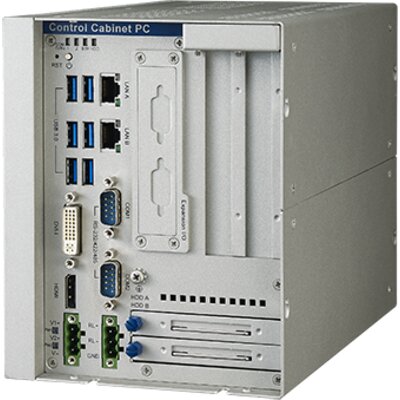

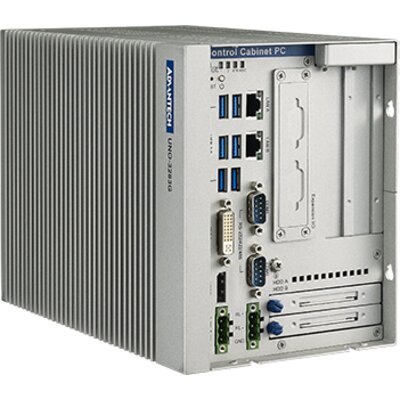

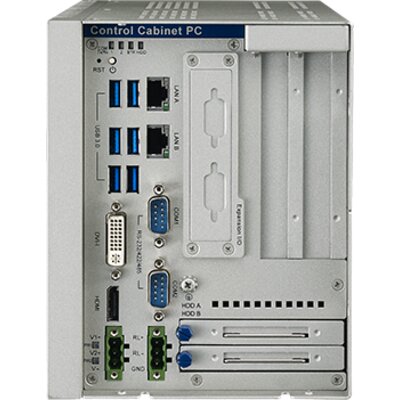

UNO-3283G-654BE

Intel® Core™ i Automation Computer with 2 PCI(e) Expansion Slots

The high-performance fanless control cabinet PC UNO-3283G/ 3285G equipped with a Intel® 6th Gen Core™ i7/ i5/ i3 processor and QM170 PCH chipset, rich I/O including 6 x USB 3.0, 2 x GigaLAN, 2 x RS-232/422/485, and 2 x RS-232 (pin header) ports, as well as DVI-I and HDMI display interfaces, UNO-3283G/ 3285G is designed to deliver high-performance computing and maximum flexibility for industrial automation applications. The provision of two hot-swappable HDD/SSD bays and up to 5 expansion slots (2 x PCIe x8, 2 x PCI) supports the integration of modular peripherals and ensures flexible installation in diverse cabinet configurations. In addition to an exchangeable RTC battery that can be accessed via the removable top cover for convenient maintenance, the system features dual power inputs that ensure a stable power supply.

Vlastnosti:

• 6th Generation IntelR Quad Core Processors with 8GB DDR4 Memory
• 2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232 (pin header), 1 x DVI-I, 1 x HDMI
• 1 x PCIex16, 1x PCI, 2 x mPCIe (2 x full), 1x CFast slot, 1 x mSATA slot (optional)
• Thumb screw for easy maintenance
• Hot-Swappable HDD/SSD support for RAID 0/1
• Easily exchangeable RTC battery
• Supports Fieldbus Protocol by iDoor Technology
• Chassis Grounding Protection
• LAN Redundancy (Teaming)
