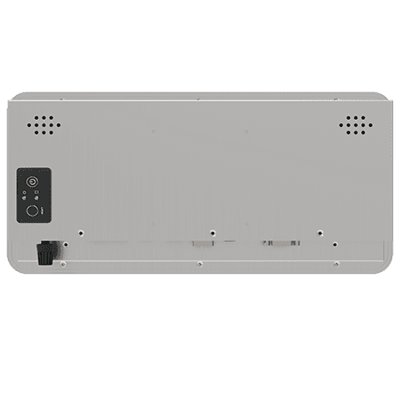

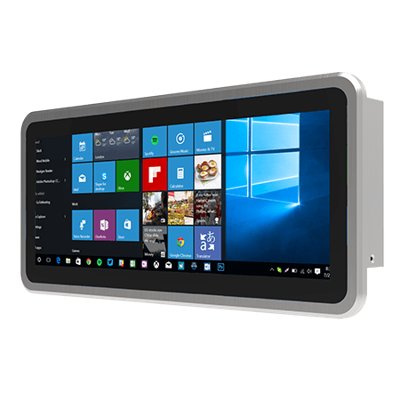

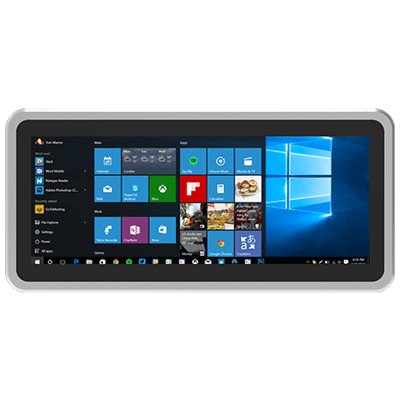

12.3" Intel® Celeron® N6211 PP Series HMI Panel PC
Vlastnosti:
- 12.3” 1920 x 720 panel
- PCAP multi-touch screen
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Fanless cooling system and ultra-low power consumption
Display
| Resolution | 1920×720 |
| Size | 12.3 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 1000.0 nits |
| View Angles | 88,88,88,88 |
| Type | Projected Capacitive Multi Touch |
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) Intel® Celeron® N6210 (up to 2.6GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
| Dimension | 338.3 x 159.8 x 56.5 mm |
| Mounting | Panel mount VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Cut out | 240 x 165mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| USB Port | 1 x USB3.2 Gen1x1 (Type-A) 1 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
| Video | 1 x HDMI 1.4 (Optional) |
| Audio | 2 x Speaker |
| Expansion Port | 1 x mPCIe slot(for half size Wifi module) (Optional) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| mini PCIe | 1 x Mini PCIE(For WLAN) (Optional) |
Control
| Button | 1 x Power Button 1 x Reset Button |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
Power
| Power Rating | 12V DC |
| Adapter | 12V 50W |
