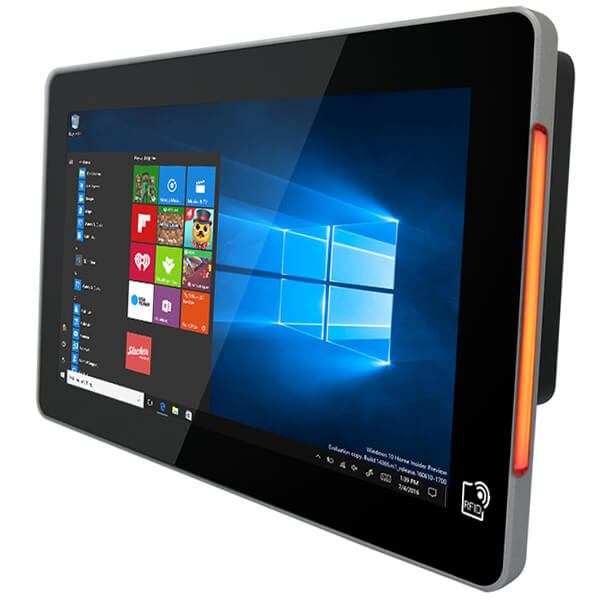

W10IB3S-PCH2AC-PoE

10.1″ TFT, Bay Trail-M N2930 1.83GHz Cap-Touch

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW51063020 Produktové číslo: W10IB3S-PCH2AC-PoEKategorie: , Výrobce: Winmate
Poptat produkt

PCH2AC-POE-10.1 S-Series HMI with LED light bar and RFID for access control applications, building automation-03_1339


Features

  • 10.1″ 1280 x 800 Resolution with Projected Capacitive Multi-Touch (P-CAP)
  • Low-power system with Intel® Celeron® N2930 processor
  • PoE standard IEEE 802.3at (25 W)
  • Fanless cooling system and ultra-low power consumption
  • Dual Gigabit Ethernet
  • Room booking schedule, access control, room information display
  • Front IP65 water and dust proof
  • Built-in RGB LED Status Light Bar, on both sides
  • Optional HF RFID Reader
  • Default PoE Function
  • Optional 2MP Front Camera

  • LCD PaneláSpecification

    Size10.1″ TFT (Widescreen)
    ActiveáDisplayáArea220.416(H) x 129.15(V)
    PixeláPitch0.21525(H) x 0.21525(V)
    Resolution1280×800
    Contrast Ratio800:1
    DisplayáColor16.7M
    Panel Brightness350(typ.)
    Viewing Angle-85~85(H);-85~85(V)
    Touch ScreenProjected Capacitive Multi-Touch (P-CAP)
    Optional anti-glare

    SystemáSpecification

    ProcessorIntel® Celeron® Bay Trail-M N2930 1.83GHz
    ChipsetIntel® ATOM SoC Integrated
    Memory1 x SODIMM DDR3L 1600 MHz (Default 2GB, Max 8GB)
    BIOSAMI 64Mbit Flash
    EthernetIntel® I210-AT GbE
    Storage1 x M.2 SSD (Default 64GB)

    I/O Connectors

    Digital IO1 x DIDO (Optional)
    DC-Input1 x DC Terminal Block 3-pin (Phoenix Type)
    USB Port1 x USB 3.0, 1 x USB 2.0
    Ethernet1 x RJ45 – 10/100/1000 Mbps (LAN)
    1 x RJ45 – 10/100/1000 Mbps (LAN/ PoE)
    COM Port1 x RS232/422/485
    Speaker1 x 1 Watt Speaker

    Mechanical and Environment

    Operating Temperature0C to +50C
    Operating Humidity30% to 90% (non-condensing)
    Cooling SystemFanless design
    Dimension (W x H x D)263.28 x 171 x 35.7 (mm)
    MoutingVESA Mount(75x75mm), Panel Mount, Front Side Wall Mount

    Product Spec

    OSWindows 10 IoT Enterprise
    Windows Embedded 8.1 Industry Pro
    Windows Embedded Standard 7

    Peripheral

    RFID(HF, 13.56MHz)HF RFID Reader 13.56 MHz (Optional)
    LED Light Bar IndicatorBuilt-in RGB LED Status Light Bar, on both sides
    Camera2MP Front Camera (Optional)

    Power

    Power Input12V DC Terminal Block (Phoenix Type)
    Power Consumption19W
    Power over EthernetPower Device (PD): follows IEEE 802.3at (25 W)

    Software

    UtilityÇťHotTab”

    Hmotnost3 kg
    Výrobce

    Winmate

    Dotyková technologie

    Kapacitní

    Procesor

    Celeron

    Rozlišení

    1280 x 800

    Stupeň krytí

    Front IP65

    Typ

    Standardní

    Úhlopříčka

    10"

    Datasheet

    Stáhnout datasheet:
