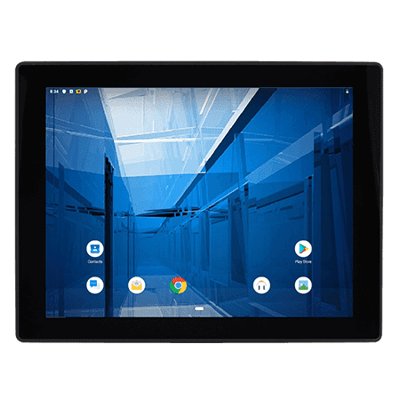

12.1" ARM A53 S Series HMI Panel PC
Vlastnosti:
- 12.1” 1024 x 768 TFT LCD with Projected Capacitive Multi-Touch (PCAP)
- Fanless cooling system and ultralow power consumption
- Support PoE function
- Optional HF RFID Reader
- Stylish design for room booking, access control, and room information applications
- Front IP65 Water and Dust Proof

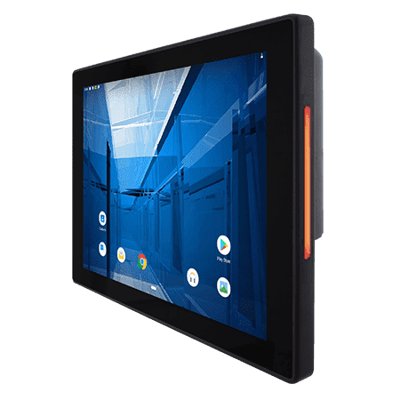

- Built-in RGB LED Light Bar Indicator
- Support Android or Linux operating system
Display
| Resolution | 1024×768 |
| Size | 12.1 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 500.0 nits |
| View Angles | 89,89,89,89 |
| Active Area | 245.76×184.32 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
| Light Bar | Built-in RGB LED Status Light Bar, on both sides |
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 11 (Upgradeable to Android 13) Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu Server 22.04 (Optional) |
Mechanical
| Dimension | 296 x 227 x 46 mm |
| Weight | 3.4 kg |

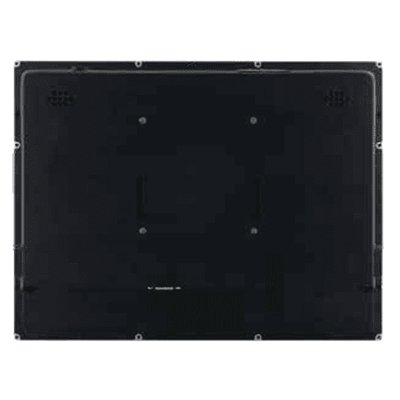

| Mounting | VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Cut out | 282x207mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 2 x USB 2.0 Type A 1 x Micro USB 2.0 OTG |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 2 x Speaker |
| LAN | 1 x LAN 10/100/1000 Mbps |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord Terminal Block to 2.5Ø Female Adapter Cable Open Wire Cable with terminal block connector Manual VESA screws |
Power
| Power Rating | 12V DC with Terminal Block 9~36V (Optional) |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
