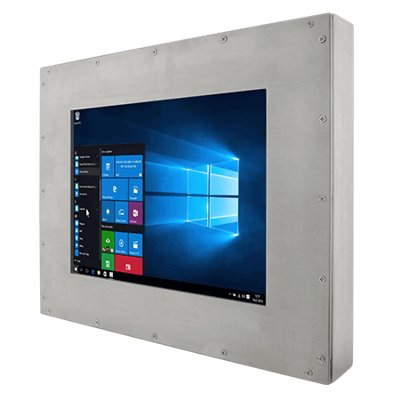

R10IB3S-67T2ST

10.4″ IP67 Stainless PPC, 1024×768, Celeron N2930

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW51301010 Produktové číslo: R10IB3S-67T2ST Kategorie: Výrobce: Winmate
Poptat produkt

R10IB3S-67T2ST-10.4-inch Fanless Full IP67 Panel PC


Features

  • Ultra Low Power but High Performance Intel® Bay Trail Dual Core N2930 1.83GHz Processor
  • Fanless Design
  • High Quality 10.4″ Panel,1024 x 768 Resolution
  • Full IP67 dust/water resistant
  • SUS 316/ AISI 316 stainless steel for food and chemical industries
  • Optical Bonding with Anti-moisture Treatment
  • Anti-Shock and Vibration Standard according to MIL-STD-810F
  • 5 Wire Resistive Touch/ Anti-Reflection Protection Glass (Optional)
  • Wide Range 9 to 36V DC Input Acceptable (Optional)

  • LCD PaneláSpecification

    Size10.4″ TFT
    ActiveáDisplayáArea210.4 (H) x 157.8 (V)
    PixeláPitch0.0685 (H) x 0.2055 (V)
    Resolution1024 x 768
    Contrast Ratio1200 : 1 (typ.)
    DisplayáColor16.2M
    Panel Brightness350(typ.)
    Viewing Angle-88~88(H);-88~88(V)

    Display Specification

    Graphic ControllerIntel® HD Graphics 4400

    SystemáSpecification

    ProcessorIntel® Celeron Bay Trail-M N2930 1.83GHz
    ChipsetIntel® Atom SoC Integrate
    MemoryDDR3L 1066 MHz SO-DIMM Slot, (default 4GB, max. 8GB)
    BIOSAMI UEFI BIOS
    Ethernet1000 Base-Tx Gigabit Ethernet Compatible
    AudioRealtek ALC886 codec
    Serial2 x RS232, 1 x RS232/422/485 ports
    USB6 x USB ports, USB 2.0 compliant
    SDD Interface1 x ›ťini PCIe SSD (default 64GB)
    ExpansionáSlots1 x Mini PCIe
    OSWindows 10 IoT Enterprise (Optional)
    Windows 8 Embedded (Optional)
    Windows 7 Embedded (Optional)
    Gross Weight(kg)8.35 kg

    I/O Connectors

    DC-Input1 x 12V DC
    USB Port2 x USB
    Ethernet1 x RJ45-10/100/1000 Mbps
    COM Port1 x RS232

    Mechanical and Environment

    Power InputDC-IN (Lockable, Power Jack)
    Operating Temperature0C ~ +45C
    Operating Humidity30% to 90% (non-condensing)
    Dimension (W x H x D)46.4 x 311 x 257 mm (W x L x H)
    IP ProofIP67

    Power

    Power Input12V DC IN (Lockable Power Jack)

    Power

    Power Consumption33W (typ.)(max. backlight & high CPU load)

    Výrobce

    Winmate

    Dotyková technologie

    Rezistivní, Volitelně

    Nerezové provedení

    Ano

    Procesor

    Celeron

    Rozlišení

    1024 x 768

    Stupeň krytí

    IP67

    Úhlopříčka

    10"
