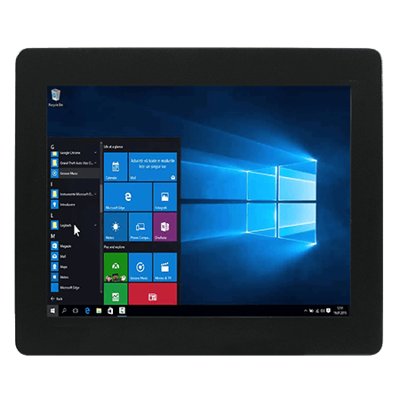

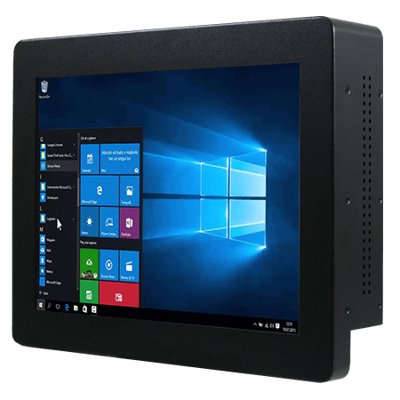

12.1" Intel® Celeron® N6211 Chassis Wide Temperature Panel PC
Vlastnosti:
- 12.1” TFT LCD
- Intel® Celeron® Elkhart Lake N6211 Processor
- 1 x SO-DIMM, max. 16GB DDR4
- 2 x Gigabit Ethernet
- Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen 2×1, 4 x USB 2.0
- Front IP65
- Wide Temperature Chassis Panel PC
Display
Resolution | 1024×768 |
Size | 12.1 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 500.0 nits |
View Angles | 89,89,89,89 |
Active Area | 245.76×184.32 mm |
Touch / Glass | Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) |
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
Processor | Intel® Celeron® N6211 ( up to 3.0GHz) Intel® Celeron® N6210 (up to 2.6GHz) (Optional) |
Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
Storage | 1 x M.2 2242 B-key SSD 128GB 256GB (Optional) 512GB 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
Dimension | 303 x 217 x 60 mm |
Weight | 3.5 kg |
Mounting | VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fanless design |
Environment
Operating Humidity | 30% to 90% RH, Non-Condensing |
Operating Temperature | -20°C to 60°C |
Storage Temperature | -25°C to 65°C |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 12V DC, 2.5φ DC jack |
USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
Video | 1 x HDMI 2.0 (Optional) |
Audio | 2 x Speaker |
Expansion Port | 1 x M.2 2242 B-Key Slot (for SATA III SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
LAN | 2 x Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Brightness Knob | 1 x Brightness Adjustment Knob |
Control
Button | 1 x Power Button 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord VESA screws |
Power
Power Rating | 12V DC |
Adapter | 12V 50W |
