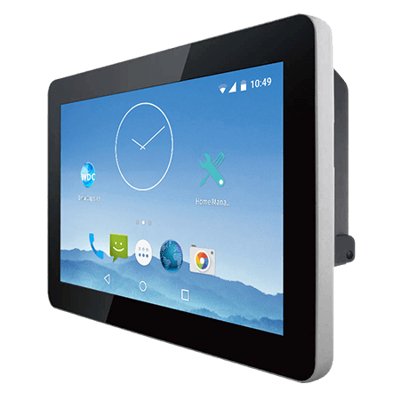

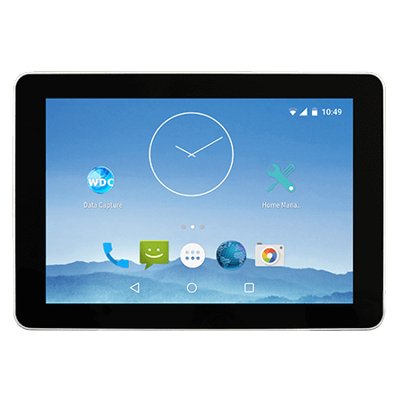

12.1" NXP i.MX6 S Series HMI Panel PC
Vlastnosti:
- 12.1” 1024 x 768 Resolution with Projected Capacitive MultiTouch (PCAP)
- Fanless cooling system and ultralow power consumption
- Support PoE function
- Optional 2MP Front Camera
- Optional HF RFID Reader
- Stylish design for room booking, access control, and room information applications
- Front IP65 Water and Dust Proof
Display
| Resolution | 1024×768 |
| Size | 12.1 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 500.0 nits |
| View Angles | 89,89,89,89 |
| Active Area | 245.76×184.32 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| Memory | 1GB 2GB (Optional) |
| Storage | eMMC: Onboard 16 GB eMMC: Onboard 32 GB (Optional) |
| Operating System | Linux Ubuntu 18.04 (Optional) Android 6.0 (Optional) Debian 7.0 (Optional) Linux 4.1.15 QT 5.5 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
Mechanical
| Dimension | 296 x 227 x 46 mm |
| Weight | 3.0 kg |
| Mounting | Wall mount VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Cut out | 282x207mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 12V DC, 2-Pin Terminal Block |
| USB Port | 1 x Console Port (Mini USB) 1 x USB OTG 1 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| SD Card Slot | 1 x Micro SD card slot |
| Video | 1 x Micro HDMI (Optional) |
| Audio | 1 x Speaker |
| Expansion Port | 1 x mPCIe slot(for Wi-Fi module) |
| LAN | 1 x LAN RJ45 Connector with PoE(PD, 802.3 at) |
| CANBUS | 1 x CANBUS, D-sub9 |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord Terminal Block to 2.5Ø Female Adapter Cable Open Wire Cable with terminal block connector VESA screws |
| Optional Accessory | VESA Wall Mount (Optional) VESA Desk Stand (Optional) Glass Wall Mount Kit (Optional) Front Side Wall Mount (Optional) VESA bracket mounting kit (Optional) |
Power
| Power Rating | 12V DC |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
