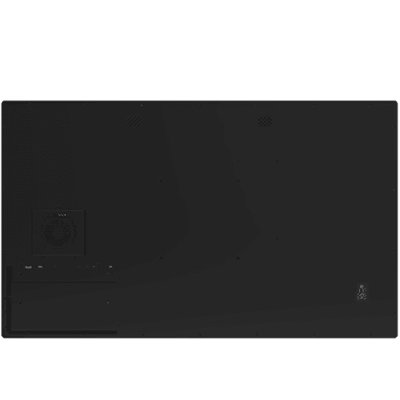

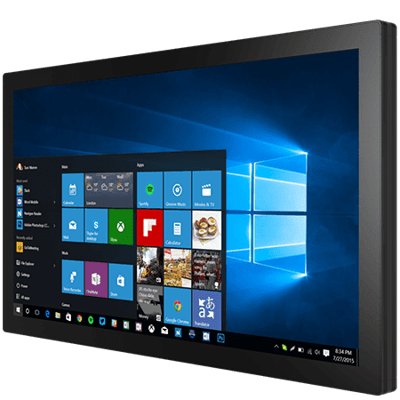

43" Intel® Core™ i3/i5/i7 (Kaby Lake) PCAP Chassis HMI Panel PC
Vlastnosti:
- Intel® 7th Generation Core™ i3/i5/i7 Processor, PCAP Chassis HMI panel pc
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Various mounting solutions, Yoke mount and VESA mount
- Plenty of I/Os including USB 3.0, RS232 serial port and RJ45-10/100/1000 LAN ports
System Specification
Processor | Intel Core i7-7700T 2.9 GHz (up to 3.80 GHz) Intel Core i5-7500T 2.7GHz up to 3.30 GHz) (Optional) Intel Core i3-7100T 3.34 GHz (Optional) |
Chipset | Intel® C236 |
Memory | 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, DDR4 2400 MHz, 4GB (Optional) 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional) |
Storage | 1 x M.2 2242 B-key SSD 128GB. M.2 2242 B-key SSD Up to 512GB. (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
Display
Resolution | 1920×1080 |
Size | 43 inches |
Contrast Ratio | 3000:1 |
Panel Brightness | 400 nits |
View Angles | 89,89,89,89 |
Active Area | 940.896×529.254 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
Mechanical
Dimension | 1028.8 x 617 x 62.8 mm |
Mounting | VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fan design |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 24V DC, Din4 pin connector |
USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
Serial Port | 1 x RS232/422/485 (Default RS232) |
Video | 1 x DP1.2 1 x HDMI 1.4 (Optional) |
Audio | 1 x Mic in 1 x Line out 2 x Speaker |
Expansion Port | 2 x M.2 slot(1 for WiFi, 1 for SSD) |
LAN | 2 x Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
Button | 1 x Power Button 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord VESA screws |
Power
Power Rating | 24V DC (Lockable Power Jack) |
Adapter | 24V 180W |
