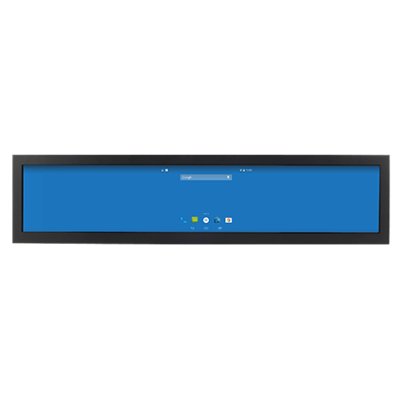

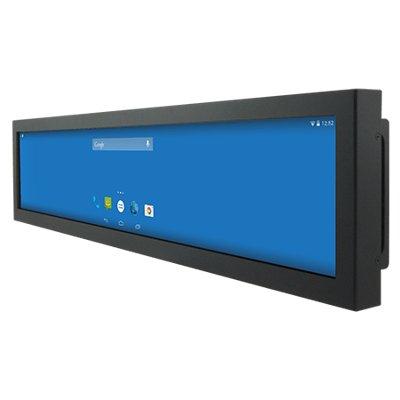

28.6" NXP i.MX6 Bar Type Panel PC
Vlastnosti:
- 28.6” 1920 x 540 Resolution with high brightness and wide aspect ratio screen
- NXP i.MX6 Dual Core 1GHz
- Fanless cooling system and Ultra-low power consumption
- Support PoE function
- 1 x USB; 1 x RS232 /422/485; 1 x CAN BUS; 1 x Micro SD Slot
Display
Touch / Glass | Protection Glass |
Resolution | 1920×0540 |
Size | 28.6 inches |
Contrast Ratio | 4000:1 |
Panel Brightness | 700 nits |
View Angles | 89,89,89,89 |
Active Area | 698.4×196.425 mm |
System Specification
Processor | NXP i.MX6 Dual Core, 1.0GHz |
Memory | 1GB 2GB (Optional) |
Storage | eMMC: Onboard 16 GB eMMC: Onboard 32 GB (Optional) |
Operating System | Linux Ubuntu 18.04 (Optional) Android 6.0 (Optional) Debian 7.0 (Optional) Linux 4.1.15 QT 5.5 (Optional) |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
Certification
Certification | CE, FCC |
Mechanical
Dimension | 740.6 x 175.7 x 72 mm |
Mounting | VESA Mount |
Enclosure | Metal |
Cooling System | Fanless Design |

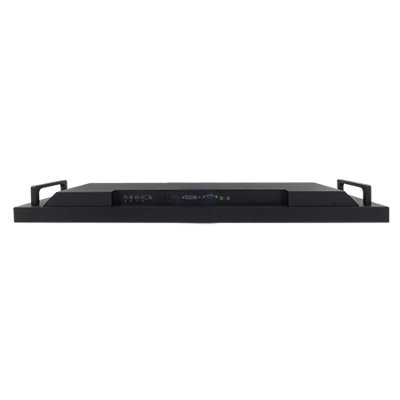

IO Ports
USB Port | 1 x USB 3.0 1 x USB 2.0 |
Serial Port | 1 x RS232(Default)/422/485 |
Video | 1 x HDMI (Optional) |
LAN | 2 x RJ45-10/100/1000 Mbps |
Accessory
Accessory | User Manual Driver CD1 Power Cord AC Adapter 2 pin Terminal Block VESA Mount Screws USB to Micro USB Cable |
Power
Power Rating | 9V~36V DC In Terminal Block |
