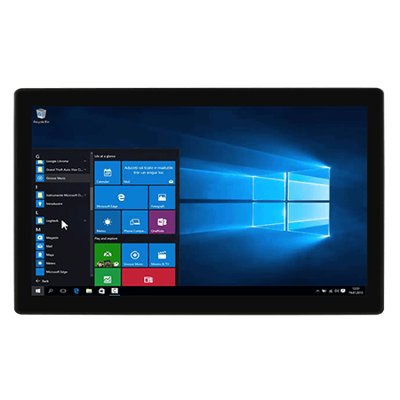

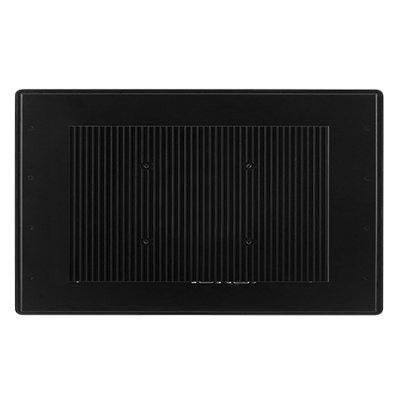

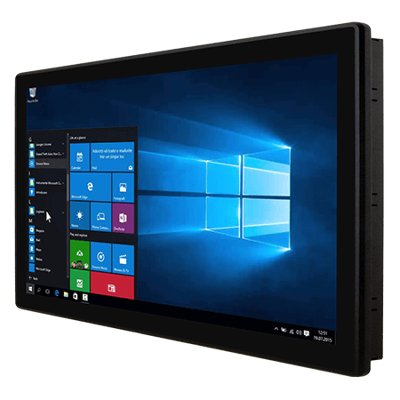

23.8" Intel® Core™ i5-1135G7 M Series HMI Panel PC
Vlastnosti:
- Intel® 11th Generation Tiger Lake UP3 Core™ i5 CPU
- Signature true flat display screen with edge-to-edge design
- Aluminum, anti-corrosion treated housing
- Superior sealing with front IP65 protection against dust and water
- Projected Capacitive Multi-Touch Screen (PCAP)
- Fanless Design
- Support wide range 9-29 V DC input
- One Quick & Easy Removable 2.5” SSD Bay Slot
Display
Resolution | 1920×1080 |
Size | 23.8 inches |
Contrast Ratio | 3000:1 |
Panel Brightness | 250.0 nits |
View Angles | 89,89,89,89 |
Active Area | 527.04×296.46 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
Expansion Port | Modular Design for easy service in the field |
Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
Memory | 2 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
Storage | 1 x M.2 2280 NVMe SSD, 128GB up to 512GB 2 x 2.5" Removable 256GB SSD up to 512GB (Optional) |
Ethernet controller | Intel® Ethernet Controller I211-AT + Intel® Ethernet Connection I219-LM |
Security | Trusted Platform Module (TPM) 2.0 |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) |
Mechanical
Dimension | 603.6 x 373 x 91.4 mm |
Weight | 12.5kg |
Mounting | Panel mount VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fanless design |
Cut out | 583 x 353mm |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 9~29V DC, 3-Pin Terminal Block |
USB Port | 4 x USB 3.2 Gen.1 (Type-A) |
Serial Port | 2 x RS232/422/485 (Default RS232) |
Video | 1 x DP1.4 1 x HDMI 2.0 (Optional) |
Audio | 1 x Audio Combo Connector (Mic in / Line Out) |
Expansion Port | 1 x mPCIe slot 1 x PCIe x16 slot (x4 signal)(module max size:180x121mm) 1 x M.2 2230 Key E slot for WiFi 1 x M.2 2280 Key M slot for NVMe SSD Swappable 2.5” HDD/SSD Bay Slot |
LAN | 2 x Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for storage |
Control
Button | 1 x Power Button with LED Indicator 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord Open Wire Cable with terminal block connector Mounting clips VESA screws |
Power
Power Rating | 9V~29V DC with protection fuse |
Adapter | 12V 120W |
Consumption | 45W~55W |
