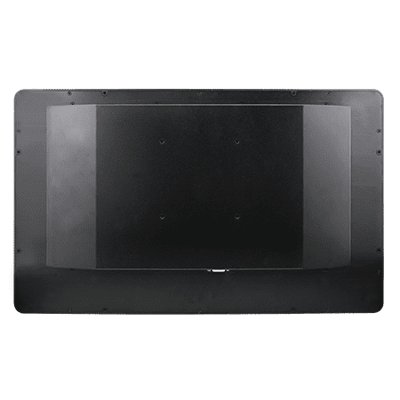

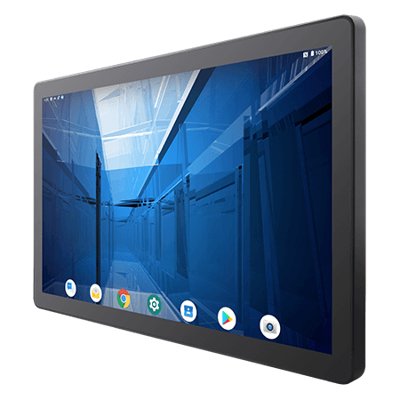

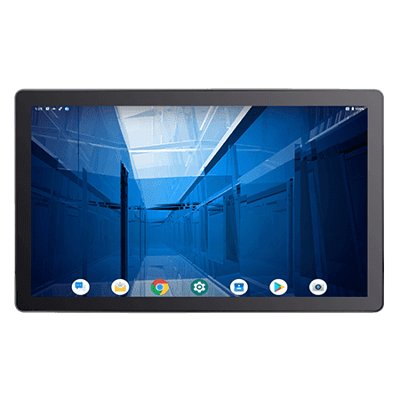

23.8" ARM A53 G-WIN GC-Series Front IP65 PCAP Panel PC
Vlastnosti:
- ARM A53 Quad Core 2.0GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plenty of I/O, including 1 x Micro USB, 2 x USB 2.0; 1 x RS232/422/485; 1 x RJ45; 1 x Micro SD Slot; 1 x Micro HDMI (Optional)
- Support Android or Linux operating system
Display
| Resolution | 1920×1080 |
| Size | 23.8 inches |
| Contrast Ratio | 3000:1 |
| Panel Brightness | 250 nits |
| View Angles | 89,89,89,89 |
| Active Area | 527.04×296.46 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | ARM A53 Quad Core 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | 32GB eMMC |
| Operating System | Android 11 (Upgradeable to Android 13) Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu (in 2023) (Optional) |
Mechanical
| Dimension | 588 x 358 x 55 mm |
| Mounting | Panel Mount VESA Mount |
| Enclosure | Metal Housing with Plastic Bezel |
| Cooling System | Fanless design |
| Cut out | 388×280 mm |
Environment
| Operating Humidity | 10% to 90% (noncondensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 2 x USB 2.0 Type A 1 x Micro USB 2.0 OTG |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
| Video | 1 x Micro HDMI Output (Optional) |
| Audio | 2 x Speaker (Optional) |
| LAN | 1 x LAN 10/100/1000 Mbps |
Accessory
| Accessory | Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord 3 Pin Terminal Block to DC Jack |
Power
| Power Rating | 12V DC with Terminal Block 9~36V (Optional) |
| Adapter | 12V 84W |
Control
| Button | 1 x Power Button (Optional) |
