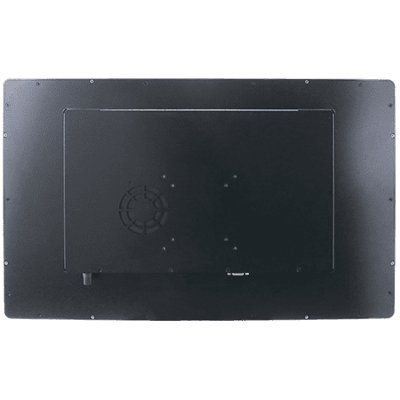

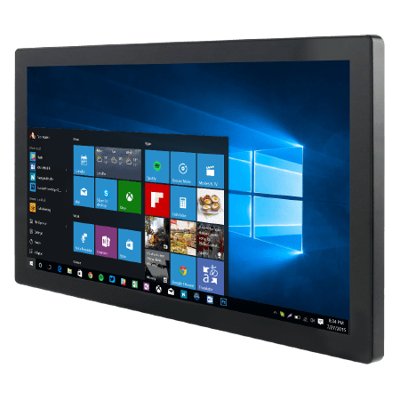

23.8" Intel® Core™ i3/i5/i7 Standalone Panel PC HMI
Vlastnosti:
- 23.8" 1920 x 1080 with P-CAP touchscreen, Standalone Panel PC HMI
- Intel® 7th Generation Core™ i3/i5/i7 processor (Kaby Lake)
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Flexible storage devices, one 2.5-inch HDD and one SSD socket
- DP Support 4096×2304@60Hz
- HDMI Support 2560×1600@60Hz
Display
| Resolution | 1920×1080 |
| Size | 23.8 inches |
| Contrast Ratio | 3000:1 |
| Panel Brightness | 250.0 nits |
| View Angles | 89,89,89,89 |
| Active Area | 527.04×296.46 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen Anti-glare Coating (Optional) |
System Specification
| Processor | Intel Core i7-7700T 2.9 GHz (up to 3.8GHz) Intel Core i5-7500T 2.7GHz (up to 3.3GHz) (Optional) Intel Core i3-7100T 3.4GHz (Optional) |
| Chipset | Intel® C236 |
| Memory | 1 x SO-DIMM, DDR4 2166 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, DDR4 2166 MHz, 4GB (Optional) 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB. M.2 2242 B-key SSD Up to 512GB. (Optional) 1 x 2.5" SSD / HDD (Optional) 2 x SATA III support RAID 0,1 (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 4 x USB 3.0 |
| Serial Port | 1 x RS232/422/485 (Dafault RS232) 2 x RS232 |
| Video | 1 x DP 1.2 1 x HDMI (Optional) |
| Audio | 1 x Mic In 1 x Line Out |
| LAN | 2 x RJ45-10/100/1000 Mbps |
Mechanical
| Dimension | 588 x 358 x 66 mm |
| Mounting | VESA Mount , Panel Mount |
| Enclosure | Metal Housing with Plastic Bezel |
| Cooling System | Fan Design |
Accessory
| Accessory | Quick Start Guide(Hardcopy) Driver CD & User Manual AC Adapter Power Cable |
Control
| Button | 1 x Power Button 1 x Reset Button |
Power
| Power Rating | 12V DC |
