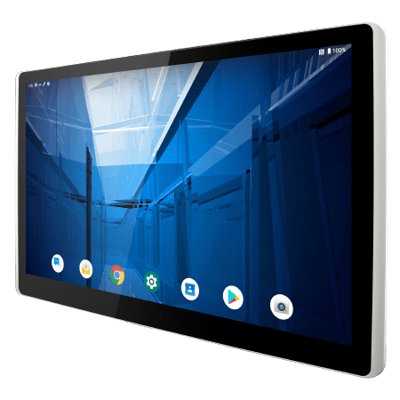

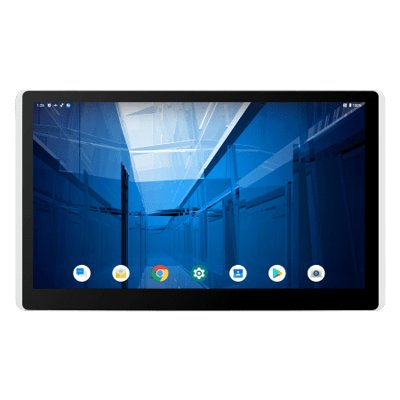

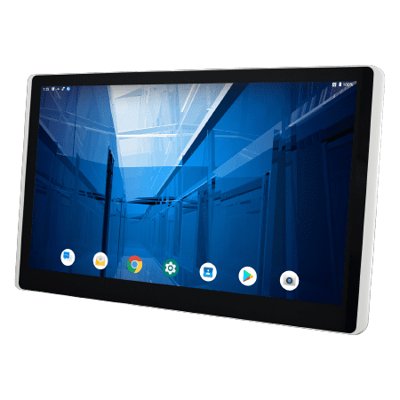

15.6" ARM A53, Android 11 HMI Panel PC
Vlastnosti:
- 15.6" 1920 x 1080 with PCAP touchscreen
- ARM A53 Quad Core 2.0GHz
- Fanless cooling system and Ultralow power consumption
- Onboard 32GB eMMC
- Onboard LPDDR4 4GB
- Android 11 HMI Panel PC
- Front IP65
- Support Android or Linux operating system
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920×1080 |
| Size | 15.6 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 400 nits |
| View Angles | 85,85,85,85 |
| Active Area | 344.16 ×193.59 mm |
System Specification
| Processor | ARM A53 Quad Core 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | 32GB eMMC |
| Operating System | Android 11 (Upgradeable to Android 13) Linux Yoctor 5.10.104 with QT 5.15 (Optional) Linux Ubuntu (in 2023) (Optional) |
Environment
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 387.8 x 232.9 x 40 mm |
| Mounting | VESA Mount (100 x 200, 100 x 100, 75 x 75 mm) |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
IO Ports
| USB Port | 2 x USB 2.0, 1 x USB OTG |
| Serial Port | 1 x RS-232/422/485 |
| SD Card Slot | 1 x Micro SD Card Slot (Max to 32GB) |
| Audio | 2 x Speaker |
| LAN | 1 x RJ45, Optional PoE(PD, 802.3AT) |
Accessory
| Accessory | Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord 3 Pin Terminal Block to DC Jack |
Power
| Power Rating | 12V DC in(Phoenix type) |
| POE | Power Device (PD), follows IEEE 802.3at (25 W) |
Control
| Button | 1 x Power Button 1 x Reset Button |
