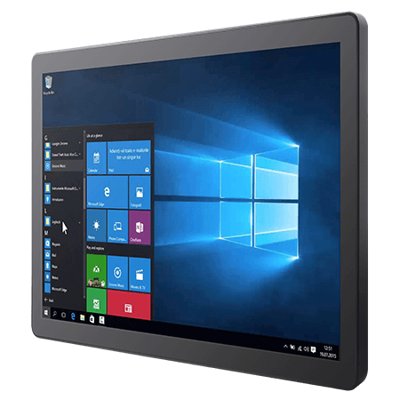

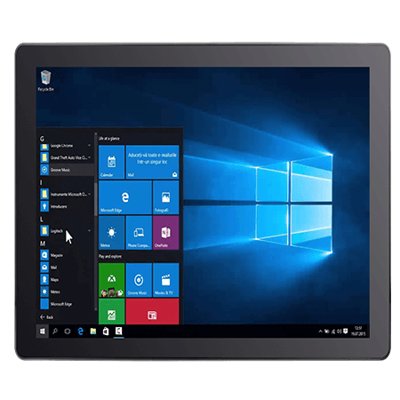

19" Intel® Core™ i5 Standalone Panel PC HMI
Vlastnosti:
- Intel® Core™ Tiger Lake UP3 i5-1135G7(Without vPro)/ Intel® Core™ Tiger Lake UP3 i5-1145G7E(With vPro)
- 1280 x 1024 Resolution
- Multi display supports DP / HDMI / LVDS / eDP panel interface
- Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen. 1 Ports
- 12V Single Voltage Power Input
- Front IP65 water and dust proof
Display
Resolution | 1280×1024 |
Size | 19.0 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 250.0 nits |
View Angles | 85,85,80,80 |
Active Area | 376.32×301.06 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, DDR4 3200 MHz, 4GB (Optional) 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional) |
Storage | 1 x M.2 M-Key 2280 NVMe SSD, 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) 1 x SATA III , up to 2TB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
Operating Humidity | 10% to 90% (Non-Condensing) |
Operating Temperature | 0~50°C |
Storage Temperature | -20°C~60°C |
Shock | MIL-STD-810G Method 516.6 |
Vibration | MIL-STD-810G Method 514.6 |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 4 x USB3.2 Gen.1 (Type-A) |
Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
Video | 1 x DP1.4 1 x HDMI 2.0 (Optional) |
Audio | 1 x Mic in 1 x Line out |
Expansion Port | 1 x M.2 2242/2280 Key M slot for SATA/NVMe SSD 1 x M.2 2230 Key E slot for WiFi (Optional) |
LAN | 2 x Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Brightness Knob | 1 x Brightness Adjustment Knob |
Mechanical
Dimension | 445 x 370 x 62 mm |
Mounting | VESA Mount/ Panel Mount |
Enclosure | Metal Housing with Plastic Bezel |
Cooling System | Fanless Design |
Accessory
Accessory | Quick Start Guide(Hardcopy) AC Adapter Power Cable |
Control
Button | 1 x Power Button 1 x Reset Button |
Power
Power Rating | 12V DC, Din4 pin connector |
Adapter | 12V 120W |
