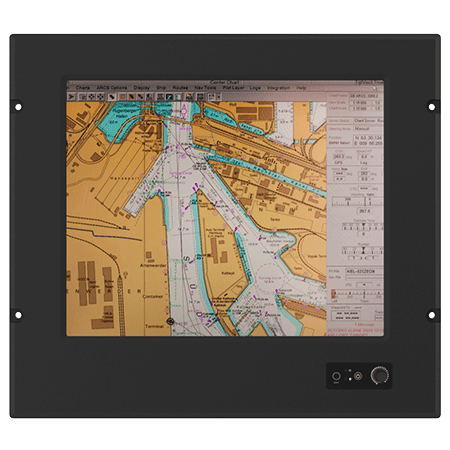

- 17" Marine Panel PC with Intel® N150 Processor
- New Design — rugged marine computing solution for shipboard control, navigation and monitoring applications
- 17" display with 1280 x 1024 resolution and 350.0 nits brightness
- Intel® N150 processor marine panel PC
- Resistive Touch Screen (Default); AR Glass (Optional)
- Panel (flush) mount IP66 aluminum housing with powder coating design
- Built and tested according to DNVGL-CG-0339, IEC 60945 and IACS-E10 marine standards
- Dimming knob control backlight brightness from nearly 0% to 100%
- 9~36V DC power input acceptable
- Dual 2.5 Giga LAN, USB 3.2 Type-A / Type-C, serial connectivity and optional HDMI
- CE, FCC certified
Display
| Size | 17.0 inches |
|---|---|
| Touch / Glass | Resistive Touch Screen (Default) AR Glass (Optional) |
| Resolution | 1280 x 1024 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 85, 85, 80, 80 |
| Active Area | 337.920 x 270.336 mm |
System Specification
| Processor | Intel® Processor N150 6M Cache, up to 3.6 GHz |
|---|---|
| Memory | 8GB (Default) 16GB (Optional) |
| Storage | 128GB (Default) 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 11 IoT Enterprise (64 bit) |
Environment
| Operating Humidity | 5% to 95% |
|---|---|
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
Certification
| Certification | CE, FCC |
|---|
IO Ports
| USB Port | 2 x USB 3.2 (Type-A) 1 x USB 3.2 (Type C) |
|---|---|
| Serial Port | 1 x RS232, (Default) 4 x RS232 or 4 x Isolation RS422/485 (Optional) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI (Optional) |
Mechanical
| Dimension | 460 x 410 x 77.2 mm |
|---|---|
| Cut out | 405 x 356 mm |
| Weight | 8.4 kg |
| Mounting | VESA mount/Panel mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
Accessory
| Accessory | Driver CD & User Manual 4 x M6 Black Screw Bolt with M6 Nut 1 x AC Adapter12V/ 84W 1 x Power Cord |
|---|
Power
| Power Rating | 9~36V DC Input Acceptable |
|---|---|
| Consumption | 65W (Typical) |
Control
| Button | 1 x Power Button 1 x Reset Button 1 x The Dimming Knob |
|---|
