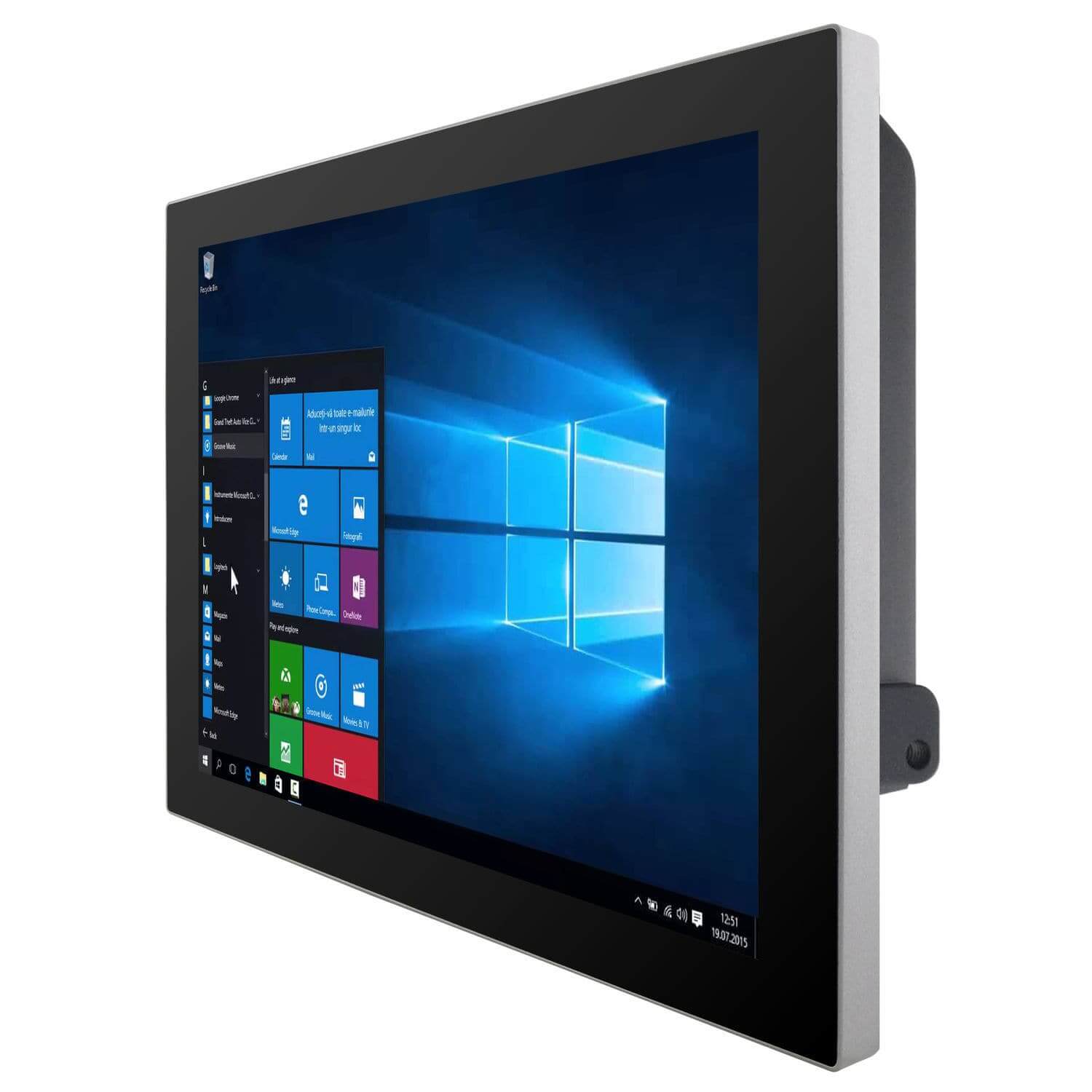

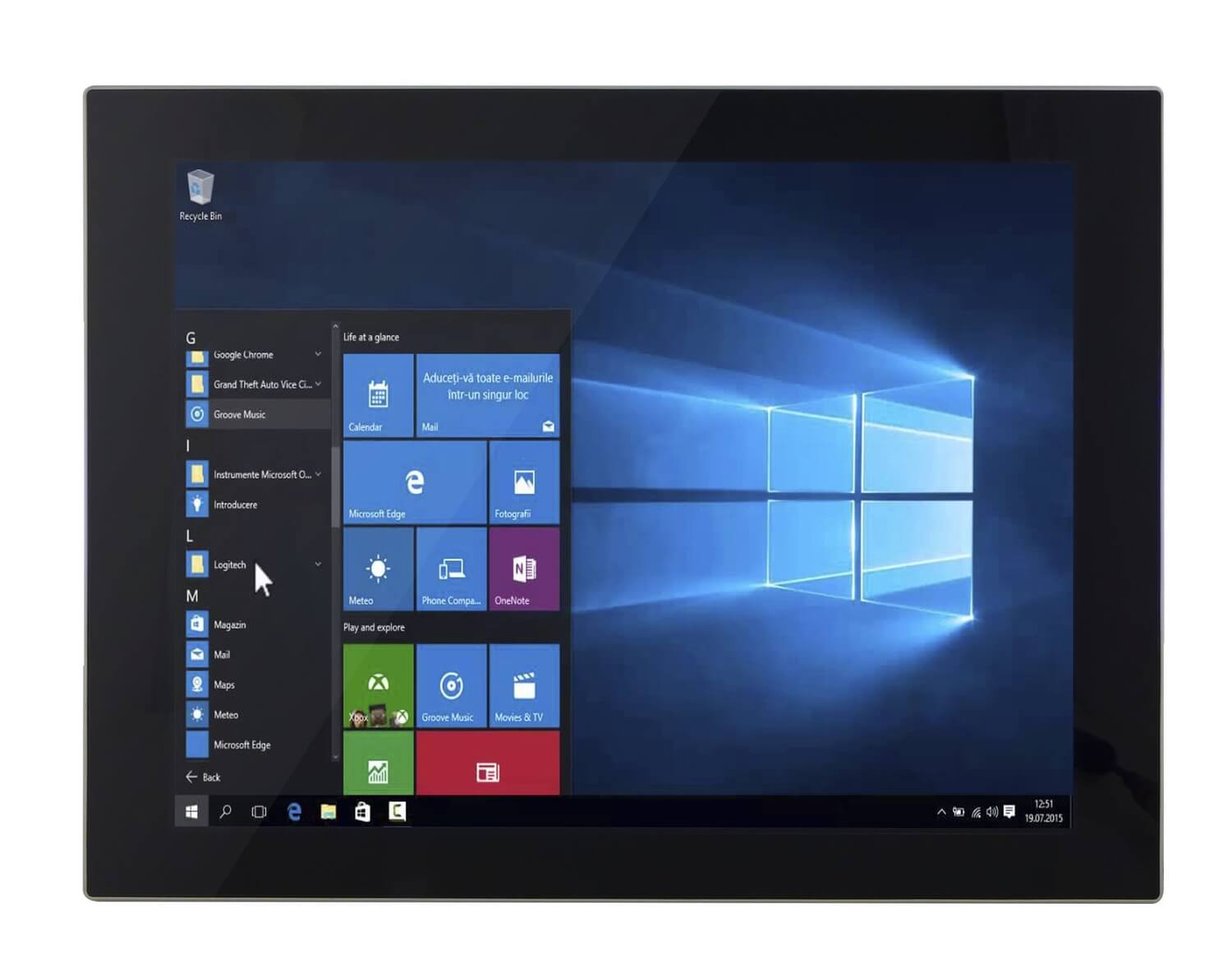

R15IP3S-GCC3

15″ G-Win Slim Panel PC, Intel Pentium N4200, 2GB RAM, 64GB SSD, 1024×768, P-Cap touchscreen, front IP65

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW31122450 Produktové číslo: R15IP3S-GCC3 Kategorie: , Výrobce: Winmate
Poptat produkt

The elegantly designed, yet rugged, industrial grade G-WIN GC series is designed for tractors, agricultural and other heavy duty vehicles. With rugged construction, ultimate computing power, GC series are guaranteed to meet “heavy duty” needs. This series feature high computing power and user-friendly interface with projected capacitive multi-touch (P-CAP) technology.

Features:

  • 15″ 1024 x 768 PCAP multi-touchscreen
  • Intel® Pentium® N4200 Apollo Lake Processor
  • Fanless cooling system and ultra-low power consumption
  • Dual Gigabit Ethernet
  • Front IP65 water and dust proof
  • Stylish design for room booking, access control and room information applications

LCD Panel Specification

Size15” TFT
Resolution1024 x 768
Contrast Ratio2000:1 (typ.)
Panel Brightness250 cd/m (typ.)
Viewing Angle-88~88 (H) ; -88~88 (V)
Touch ScreenProjected Capacitive Multi-Touch
Maximum Colors16.2M

System Specification

ProcessorIntel® Pentium® N4200 (2M Cache, up to 2.5 GHz)
Memory2GB DDR3L 1866 SO-DIMM (Optional 8 GB)
Storage64GB M.2 SSD (Default)
OS SupportWindows 10 IoT Enterprise
LANDual Intel® I210-AT GbE LAN

I/O Connectors

Serial1 x RS-232/422/485
USB Port2 x USB 3.0
Ethernet1 x RJ-45-10/100/1000 Mbps, 1 x RJ-45

Mechanical and Environment

Operating Temperature0 °C to 50 °C
MountingVESA Mount (100x100mm)
Dimension (W x H x D)363.40 x 277.86 x 44.50 (mm)
IP ProofFront IP65

Product Spec

Security SupportTrusted Platform Module (TPM 2.0)

Power

Power Input12V DC in
Power Consumption24W
Rozměry 363 × 278 × 45 mm
Výrobce

Winmate

Dotyková technologie

Kapacitní

Procesor

Pentium

Rozlišení

1024 x 768

Stupeň krytí

Front IP65

Typ

Standardní

Úhlopříčka

15"

Datasheet

Stáhnout datasheet:
