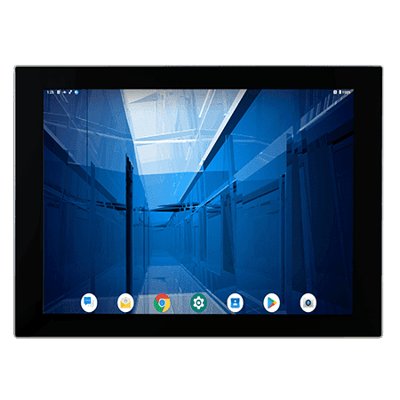

15" ARM A53 S Series HMI Panel PC
Vlastnosti:
- 15” 1024 x 768 TFT LCD with Projected Capacitive Multi-Touch (PCAP)
- Fanless cooling system and ultralow power consumption
- Support PoE function
- Optional 2MP Front Camera
- Optional HF RFID Reader
- Stylish design for room booking, access control, and room information applications
- Front IP65 Water and Dust Proof

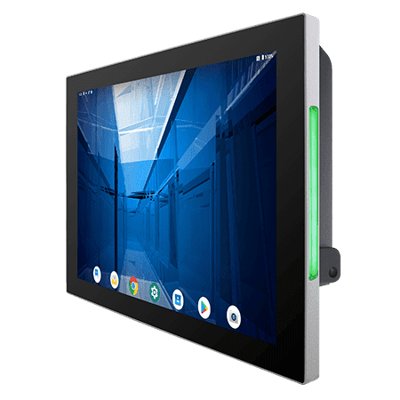

- Built-in RGB LED Light Bar Indicator
- Support Android or Linux operating system
Display
Resolution | 1024×768 |
Size | 15 inches |
Contrast Ratio | 2000:1 |
Panel Brightness | 300 nits |
View Angles | 88,88,88,88 |
Active Area | 304.1×228.1 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
RFID | HF RFID Reader 13.56 MHz (Optional) |
Light Bar | Built-in RGB LED Status Light Bar, on both sides |
Processor | ARM A53 Quad Core 2.0GHz |
Memory | 4GB LPDDR4 |
Storage | 32GB eMMC |
Operating System | Android 11 (Upgradeable to Android 13) Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu (in 2023) (Optional) |
Mechanical
Dimension | 363.40 x 277.86 x 44.50 mm |

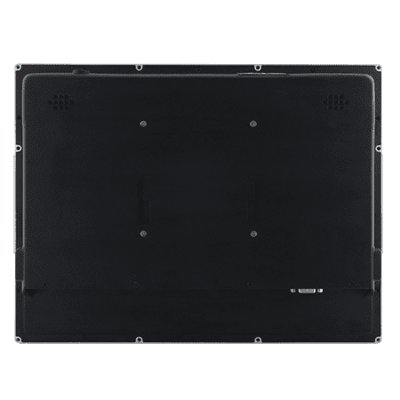

Mounting | Panel Mount VESA Mount |
Enclosure | Aluminum |
Cooling System | Fanless design |
Cut out | 346.5x261mm |
Environment
Operating Humidity | 10% to 90% (noncondensing) |
Operating Temperature | 0~50°C |
Storage Temperature | -20~60°C |
Shock | MIL-STD-810G Method 516.6 |
Vibration | MIL-STD-810G Method 514.6 |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 2 x USB 2.0 Type A 1 x Micro USB 2.0 OTG |
Serial Port | 1 x RS232/422/485 (Default RS232) |
SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
Video | 1 x Micro HDMI Output (Optional) |
Audio | 2 x Speaker |
LAN | 1 x LAN 10/100/1000 Mbps |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord Terminal Block to 2.5Ø Female Adapter Cable Open Wire Cable with terminal block connector Manual VESA screws |
Power
Power Rating | 12V DC with Terminal Block 9~36V (Optional) |
Adapter | 12V 50W |
POE | PoE (PD): follows IEEE 802.3at (25 W) |
Camera
Front Camera | 2MP Camera (Optional) |
