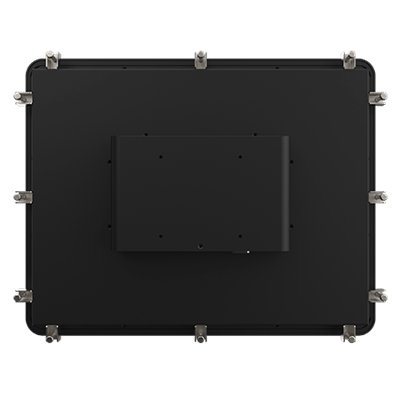

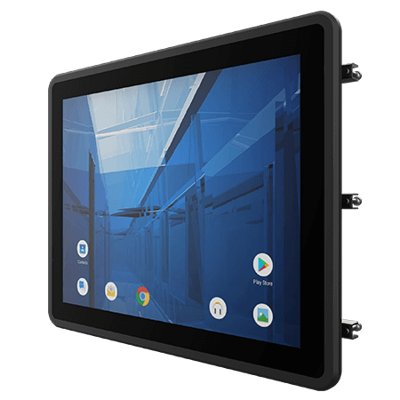

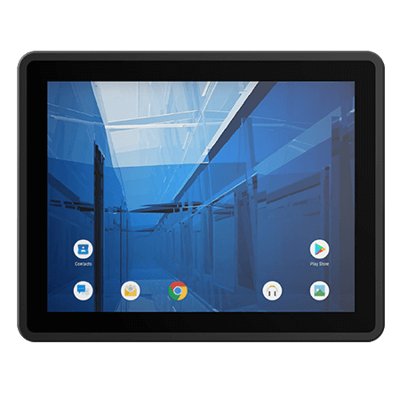

15" ARM A53 E Series HMI Panel PC
Vlastnosti:
- 15” 1024 x 768 Resolution with Projected Capacitive Multi-Touch (P-CAP)
- ARM A53 Quad Core 2.0GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
- Android 11
- Support Android or Linux operating system
Display
Resolution | 1024×768 |
Size | 15.0 inches |
Contrast Ratio | 2000:1 |
Panel Brightness | 300.0 nits |
View Angles | 88,88,88,88 |
Active Area | 304.1×228.1 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
Processor | ARM A53 (Quad Core 2.0GHz) |
Memory | 4GB LPDDR4 |
Storage | eMMC: Onboard 32 GB |
Operating System | Android 11 (Upgradeable to Android 13) Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu Server 22.04 (Optional) |
Mechanical
Dimension | 367 x 291 x 65.8 mm |
Weight | 3.0 kg |
Mounting | Panel Mount VESA Mount |
Enclosure | Metal Front Bezel with Plastic Back Cover |
Cooling System | Fanless Design |
Cut out | 342x261mm |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 60°C |
Shock | MIL-STD-810G Method 516.6 Procedure I |
Vibration | MIL-STD-810G Method 514.6 Procedure I |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 2 x USB 2.0 Type A 1 x Micro USB 2.0 OTG |
Serial Port | 1 x RS232/422/485 (Default RS232) |
SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
Video | 1 x Micro HDMI Output (Optional) |
LAN | 1 x LAN 10/100/1000 Mbps PoE at/af (Optional) |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Manual Mounting clips |
Power
Power Rating | 12V DC with Terminal Block |
Adapter | 12V 50W |
