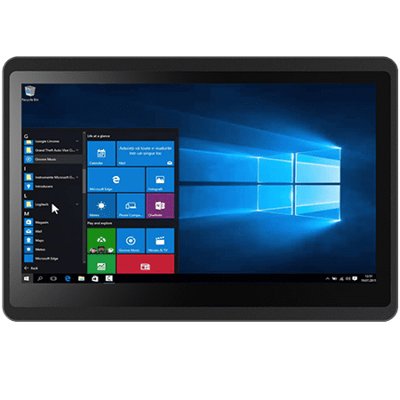

15" Intel® Celeron® N6211 E Series HMI Panel PC
Vlastnosti:
- 15” 1024 x 768 Resolution with PCAP touchscreen
- Intel® Celeron® N6211 Processor 1.5M Cache, up to 3.0 GHz
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Fanless cooling system and ultra-low power consumption
Display
Resolution | 1024×768 |
Size | 15.0 inches |
Contrast Ratio | 2000:1 |
Panel Brightness | 300.0 nits |
View Angles | 88,88,88,88 |
Active Area | 304.1×228.1 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
Processor | Intel® Celeron® N6211 (1.5M Cache, up to 2.6GHz) Intel® Celeron® N6210 (1.5M Cache, up to 3.0GHz) (Optional) |
Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
Storage | 1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
Dimension | 367 x 291 x 65.8 mm |
Mounting | Panel mount VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fanless design |
Cut out | 342 x 261mm |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 12V DC, 2.5φ DC jack |
USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
Serial Port | 1 x RS232/422/485 (Default RS232) |
Video | 1 x HDMI 2.0 (Optional) |
Expansion Port | 2 x M.2 slot(1 for WiFi, 1 for SSD) |
LAN | 2 x Giga LAN RJ45 Connector |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
