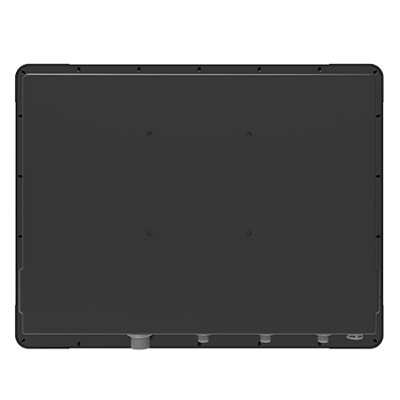

15" Intel® Celeron® N6211 G-WIN Full IP67 Panel PC
Vlastnosti:
- Intel® Celeron® N6211 Processor 1.5M Cache, up to 2.60 GHz, Fanless Design
- High Quality 15" Panel, 1024 x 768 resolution, 300 nits (Optional for 1000 nits)
- IP67 Dust/ Water proof design with VESA mount
- Aluminum Die-Casting Housing with Anti-Corrosion Treatments
- Build in ambient Light sensor
- 9~ 36V DC Isolation Wide Range Power Input. Optional Ignition on/off control function
- 5 Wire Resistive Touch / Anti-Reflective Protection Glass (Optional)
- Optional HB/Sunlight Readable up to 1000 nits
- Design to meet EN50155, 15inch Full IP67 Panel PC
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
Processor | Intel® Celeron® N6211 (1.5M Cache, up to 2.6GHz) Intel® Celeron® N6210 (1.5M Cache, up to 3.0GHz) (Optional) |
Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
Storage | 1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Display
Resolution | 1024×768 |
Size | 15.0 inches |
Contrast Ratio | 2000:1 |
Panel Brightness | 300.0 nits |
View Angles | 88,88,88,88 |
Active Area | 304.1×228.1 mm |
Touch / Glass | Resistive Touch Screen Bonding With Panel Protection Glass Without touch function (Optional) |
Optional function | High brightness Panel for sunlight readable (Optional) |
Mechanical
Dimension | 398 x 308 x 58 mm |
Mounting | VESA Mount Yoke Mount |
Enclosure | Aluminum Housing |
Cooling System | Fanless design |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | -10°C to 55°C -40°C to 70°C (with intelligent heater) |
Storage Temperature | -30°C to 70°C |
Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
Vibration | MIL-STD-810G Method 514.6 Procedure I |
IP rating | IP67 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x M12 waterproof connector for 9~36V DC |
USB Port | 1 x M12 waterproof connector for 2 x USB2.0 |
Serial Port | 1 x M12 waterproof connector for RS232 |
LAN | 1 x waterproof Giga LAN RJ45 connector |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
Button | 1 x Power Button 1 x Reset Button 1 x Lock / Unlock front key function button 1 x Auto Dimming / Manually button 1 x Day / Night Mode button 1 x Brightness Up button 1 x Brightness Down button 1 x LED indicator brightness adjustment button 1 x Light sensor |
Accessory
Accessory | External open wire Power cable with waterproof connector External USB cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Waterproof caps RJ45 female-female converter VESA screws |
Optional Accessory | Yoke mount stand (Optional) 100~240V AC to DC Adapter with power cord (Optional) |
