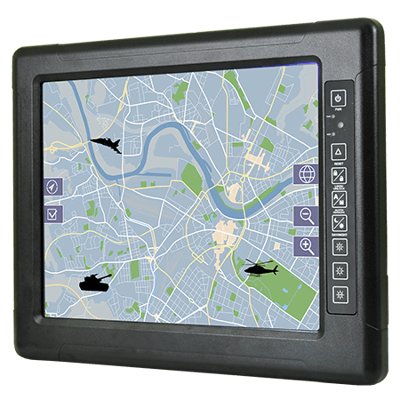

15" Intel® Celeron® N2930 G-WIN Defence Panel PC
Vlastnosti:
- Build in ambient Light sensor
- High Quality 15" Panel, 1024×768 resolution, 1000 nits
- 5 Wire Resistive Touchscreen(Optional) / Anti-Reflection Protection Glass
- 802.11 a/b/g/n Wireless LAN with Antenna (Optional)
- Aluminum Housing with Anti-Corrosion Treatments
- Anti-Shock and Vibration Standard according to MIL-STD-810F/G & IEC60068-2-27
- Fanless Design
- Full IP65 Dust/water resistant Protection (Except I/O parts)
- Defence grade power connector
- Ultra Low Power and High Performance Intel® Bay Trail N2930 1.83 GHz
- Wide Range 9 to 36 V DC Input (Optional)
Display
Resolution | 1024×768 |
Size | 15.0 inches |
Contrast Ratio | 2500:1 |
Panel Brightness | 1000.0 nits |
View Angles | 88,88,88,88 |
Active Area | 304.1×228.1 mm |
Touch / Glass | AR Protection Glass 5 Wires Resistive Touch (Optional) 5 Wire Resistive with EMI Mesh Filter (Optional) EMI Glass (Optional) |
System Specification
Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
Storage | 1 x mSATA SSD 128GB. mSATA SSD up to 512GB. (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
WLAN | Support (Optional) |
BT | Support (Optional) |
Environment
Operating Humidity | 10% to 95% RH |
Operating Temperature | -20°C~60°C |
Storage Temperature | -30°C~70°C |
Shock | Operating:30g for 18ms |
Vibration | Operating: 1.60/1.96/2.18 g rms for XYZ / 5-500Hz |
Compliance
MIL-STD 461E/F/G | RE101 / RE102 CE101 / CE102 CS118 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
MIL-STD 810G | Vibration Method 514.6 Humidity Method 507.4 Transit Drop Method516.5 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB2.0 1 x USB3.0 |
Serial Port | 1 x RS-232(Default)/422/485 1 x RS-232 (Optional) |
Video | 1 x HDMI (Optional) |
LAN | 2 x RJ45 |
Mechanical
Dimension | 398 x 308 x 58 mm |
Mounting | VESA Mount |
Enclosure | Metal Housing with Aluminum Bezel |
Cooling System | Fanless Design |
Accessory
Accessory | User Manual Driver CD and User Manual Touch Driver CD Open Wire Cable 100~240V AC to DC Adapter Power Cord |
Power
Power Rating | 12V DC (MIL-DTL-38999/1 connector) 9V to 36V wide range (Optional) |
Control
Button | 8 key: Power Reset Lock/Unlock Auto Dimming/Manually Day/Night Mode Brightness Up Brightness Down LED Adjustment |
