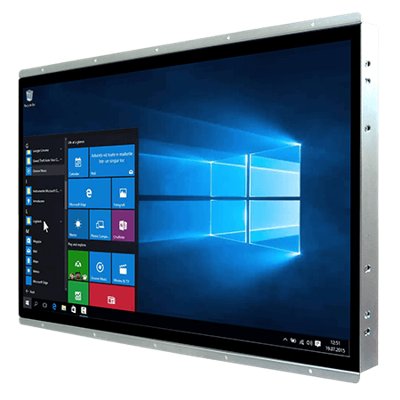

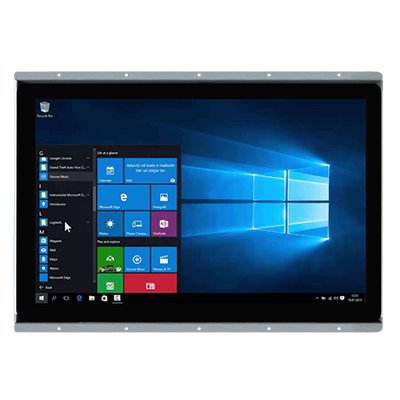

21.5" Intel® Pentium® N4200 PO Series HMI Panel PC
Vlastnosti:
- 21.5”, 1920 x 1080, 250 nits
- Intel® Pentium® Apollo Lake N4200, 1.10 GHz
- Slim-line design in open-frame housing
- Multi-touch PCAP flat design
- 12 V DC IN with power jack
- Suitable for KIOSK applications
Display
Resolution | 1920×1080 |
Size | 21.5 inches |
Contrast Ratio | 3000:1 |
Panel Brightness | 250 nits |
View Angles | 89,89,89,89 |
Active Area | 476.64×268.11 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
Memory | 2 x SODIMM, DDR3L 1866 MHz, 4GB 8GB (Optional) |
Storage | 1 x M.2 2242 SSD 128GB M.2 2242 SSD up to 512GB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
Mechanical
Dimension | 526 x 338 x 70 mm |
Mounting | Open Frame Panel Mount VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fanless design |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 12V DC, Din4 pin connector |
USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
Video | 1 x DP1.2 1 x HDMI 1.4 (Optional) 1 x VGA (Optional) |
Audio | 1 x Mic in 1 x Line out 2 x Speaker |
Expansion Port | 2 x M.2 slot(1 for WiFi, 1 for SSD) 1 x PCIe 2.0 x1 (Optional) |
LAN | 2 x Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Brightness Knob | 1 x Brightness Adjustment Knob |
Control
Button | 1 x Power Button 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord VESA screws |
Power
Power Rating | 12V DC |
Adapter | 12V 84W |
