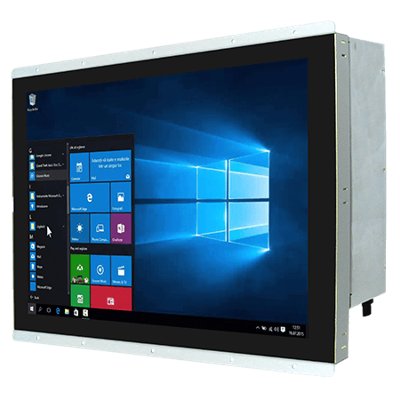

15.6" Intel® Celeron® N2930 PO Series HMI Panel PC
Vlastnosti:
- 15.6” 1920 x 1080, 300 nits
- Intel® Celeron® Bay Trail-M N2930, 1.83 GHz
- Slim-line design in open-frame housing
- Multi-touch PCAP flat design
- 12 V DC IN with power jack
- Suitable for KIOSK applications
Display
Resolution | 1920×1080 |
Size | 15.6 inches |
Contrast Ratio | 800:1 |
Panel Brightness | 300 nits |
View Angles | 85,85,85,85 |
Active Area | 344.16×193.59 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
Memory | 2 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
Storage | 1 x mSATA SSD 128GB mSATA SSD up to 512GB (Optional) 1 x SATA II for 2.5" HDD (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Operating System | Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
WLAN | Support (Optional) |
BT | Support (Optional) |
Mechanical
Dimension | 392 x 268 x 74 mm |
Mounting | Open Frame Panel Mount VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fanless design |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 12V DC, Din4 pin connector |
USB Port | 1 x USB3.2 Gen1x1 (Type-A) 3 x USB2.0 (Type-A) |
Serial Port | 1 x RS232/422/485 (Default RS232) 2 x RS232 1 x RS232 (Optional) |
Video | 1 x VGA |
Audio | Mic in Line in Line out |
Expansion Port | 2 x mPCIe slot |
LAN | 2 x Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Brightness Knob | 1 x Brightness Adjustment Knob |
PS/2 | 2 x PS/2 |
mini PCIe | 3 x Mini PCIE |
Control
Button | 1 x Power Button 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord VESA screws |
Power
Power Rating | 12V DC |
Adapter | 12V 84W |
