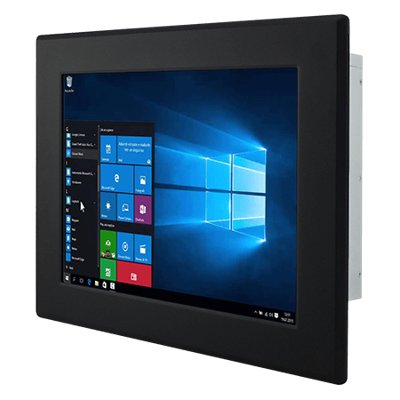

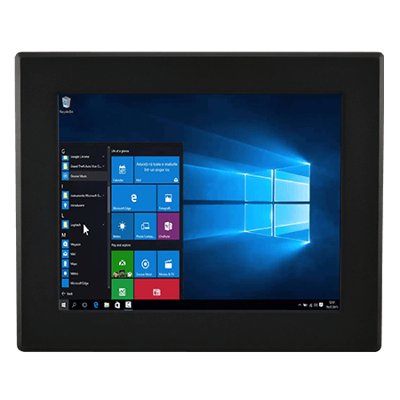

17" Intel® Celeron® N2930 Panel Mount Panel PC
Vlastnosti:
- 17" TFT SXGA LCD Panel Mount Panel PC
- Intel® Celeron® Bay Trial-M N2930 1.83 GHz Processor
- SO-DIMM DDR3L 1600, max. 8 GB
- Integrated VGA, 24 bit Dual-channel LVDS, DVI
- Integrated Dual Broadcom I210AT GbE Controller
- 1 x SATA II, 3 x COM, 3 x USB 2.0, 1 x USB 3.0, 2 x Mini PCIe slot
Display
| Resolution | 1280×1024 |
| Size | 17.0 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 350.0 nits |
| View Angles | 85,85,80,80 |
| Active Area | 337.920×270.336 mm |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) |
System Specification
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 2 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x mSATA SSD 128GB 256GB (Optional) 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Mechanical
| Dimension | 440 x 360 x 90 mm |
| Weight | 5.9 kg |
| Mounting | Panel mount VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Cut out | 394 x 314 mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 12V DC, Din4 pin connector |
| USB Port | 1 x USB3.2 Gen1x1 (Type-A) 3 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 2 x RS232 1 x RS232 (Optional) |
| Video | 1 x VGA |
| Audio | Mic in Line in Line out |
| Expansion Port | 1 x mPCIe slot(for SSD) 1 x mPCIe slot(for Wi-Fi module) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| PS/2 | 2 x PS/2 |
| mini PCIe | 3 x Mini PCIE |
Control
| Button | 1 x Power Button 1 x Reset Button |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
Power
| Power Rating | 12V DC |
| Adapter | 12V 84W |
