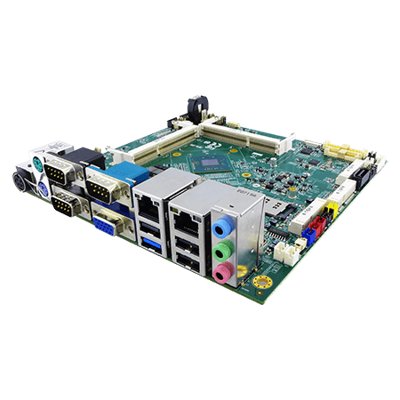

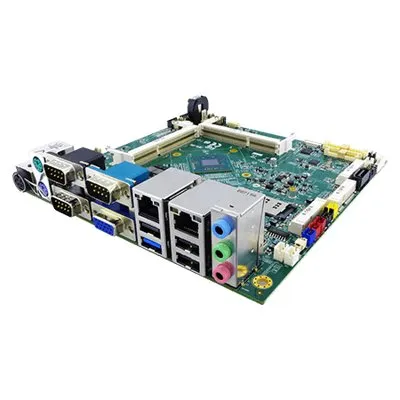

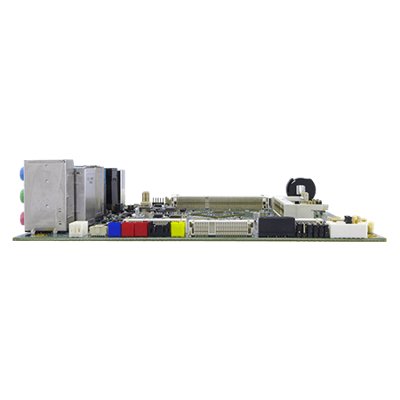

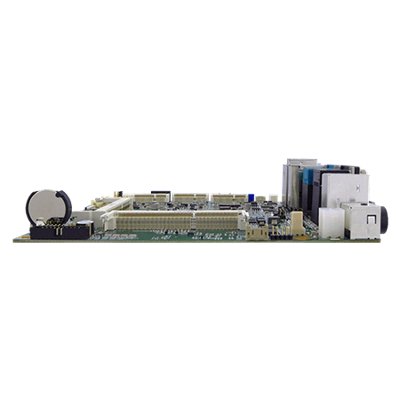

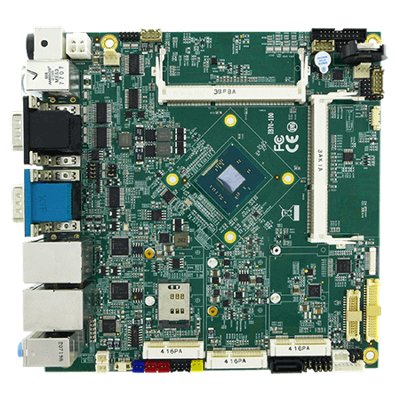

Intel® Celeron® N2930 Mini-ITX Embedded Board
Vlastnosti:
- Intel® Celeron® Bay Trial-M N2930 1.83GHz Processor
- Mini ITX Form Factor, industrial sbc design
- DDR3L 1066MHz dual-channel SO-DIMM supported up to 8GB
- 12V DC Power Input
- Integrated VGA, Dual-Channel 24-bit LVDS, eDP(Optional),HDMI(Optional)
- Supports 1xSATA II, 4xCOM, 1xUSB 3.0, 7xUSB 2.0 12-Pin GPIO Connector, 2xMini PCIe Slot
System Specification
Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
Memory | 2 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
Storage | 1 x mSATA SSD 128GB mSATA SSD up to 512GB (Optional) 1 x SATA II for 2.5" HDD (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Operating System | Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |

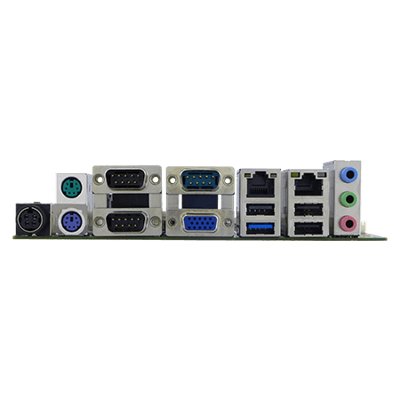

IO Ports
Power Input | 1 x 12V DC, Din4 pin connector |
USB Port | 1 x USB3.2 Gen1x1 (Type-A) 3 x USB2.0 (Type-A) |
Serial Port | 1 x RS232/422/485 (Default RS232) 2 x RS232 |
Video | 1 x VGA |
Audio | Mic in Line in Line out |
LAN | 2 x Giga LAN RJ45 Connector |
PS/2 | 2 x PS/2 |
Internal IO Ports
Power input | 1 x 4pin(2×2) for 12V DC in |
Power output | 1 x 2pin(1×2) blue wafer for 3.3V DC out 2 x 2pin(1×2) red wafer for 5V DC out 1 x 2pin(1×2) yellow wafer for 12V DC out |
USB | 2 x 8pin(2×4) for 4 x USB 2.0 |
Serial port | 1 x 10pin(2×5) for RS232 |
Display | 1 x 40pin DF13 connector for LVDS 1 x 30pin DF13 connector for eDP (Optional) 1 x 18pin FFC connector for HDMI (Optional) |
Backlight | 1 x 7pin(1×7) for panel backlight |
SATA | 1 x SATA II 1 x 8pin(2×4) for SATA power |
DIDO | 1 x 14pin(2×7) for Digital input/output |
VR | 1 x 3pin(1×3) for Digital panel backlight brightness control 1 x 5pin(1×5) VRD debug port |
Fan | 1 x 3pin(1×3) for CPU Fan 1 x 3pin(1×3) for System Fan |
OSD | 1 x 10pin(2×5) for OSD control |
Speaker | 2 x 2pin(1×2) for Speaker |
LPT | 1 x 20pin(2×10) for Parallel Port(LPT) |
Backup battery | 1 x RTC battery holder |
BIOS debug | 1 x 10pin(2×5) for LPC debug |
Certification
Certification | CE, FCC |
Mechanical
Dimension | 170 x 170 mm |
Environment
Operating Humidity | 30% to 90% RH, Non-Condensing |
Operating Temperature | -20°C to 60°C |
Storage Temperature | -25°C to 65°C |
Accessory
Optional Accessory | Driver CD & Manual (Optional) Adapter (Optional) |
