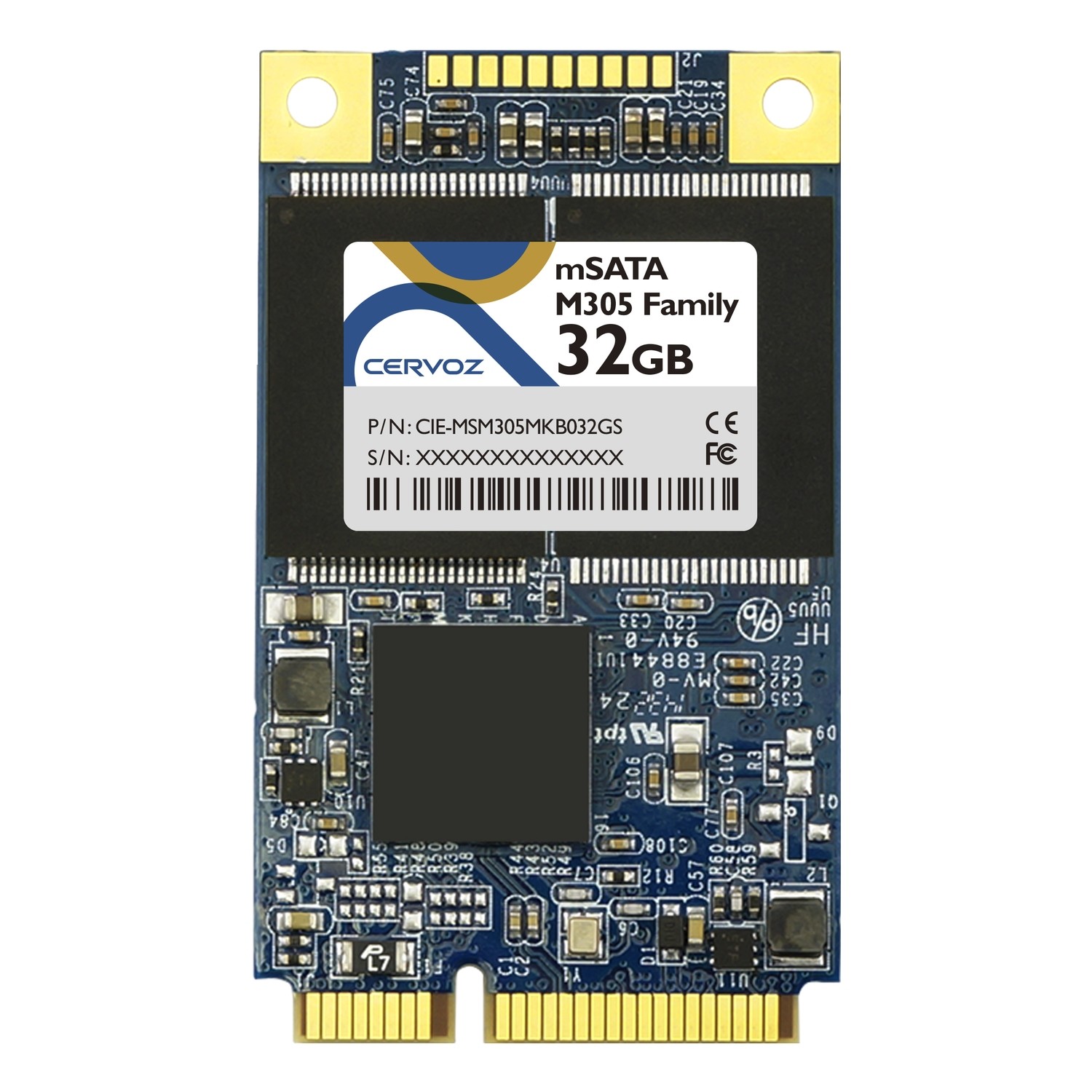

32GB Industrial mSATA SSD Module M305


Pro zobrazení cen se prosím přihlaste.

Číslo zboží: X46818425 Produktové číslo: CIE-MSM305MKB032GSKategorie: Výrobce: Cervoz
Poptat produkt

Cervoz Industrial mSATA Embedded Module M305 family is a Solid State Flash Disk product that is in compliance with the mSATA and SATA III standards. mSATA M305 family fits in any mSATA sockets in a PC or motherboard; it can be used for both booting and storage purposes.

M305 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes both standard temperature range and wide temperature range options with various capacities to choose from.

M305 family offers outstanding performance and reliability; the product family is a perfect solution for price sensitive semi-industrial and general industrial applications.


  1. Compliant with SATA III 6.0Gb/s (backward compatible to 1.5Gb/s and 3Gb/s)
  2. MLC NAND flash memory
  3. Capacity: 16GB ~ 256GB
  4. Operating as boot disk
  5. Low power consumption
  6. Shock resistance and anti-vibration
  7. Static and dynamic wear leveling
  8. Bad block management
  9. S.M.A.R.T. & TRIM command
  10. Fully compatible with Windows XP, Windows 7, Windows 8, Windows 10, Mac OS, and Linux
  11. RoHS compliant


Form FactormSATA
InterfaceSATA III 6.0Gb/s (backward compatible to 3.0Gb/s, 1.5Gb/s)
NAND Flash TypeMLC
Capacity Standard Temp. : 16GB/32GB/64GB/128GB/256GB

Wide Temp. : 32GB/64GB/128GB

Sequential Readup to 500MB/s
Sequential Writeup to 280MB/s
ECC Schemeup to 66bits / 1K Byte
MTBF2,000,000 hours
Terabyte Written (TBW) 16GB : 15.6

32GB : 31

64GB : 63

128GB : 125

256GB : 250

Low Power Management DEVSLP mode


Supply Voltage+3.3V DC +/- 5%
Power Consumption Active mode: < 940mW

Idle mode: < 100mW

DEVSLP mode: < 5mW

Dimension (LxWxH)50.95*30.00*3.90mm
Weight6.5 +/- 1g
Hmotnost0,065 kg
Rozměry51 × 30 × 4 mm





32 GB

Provozní teplota
