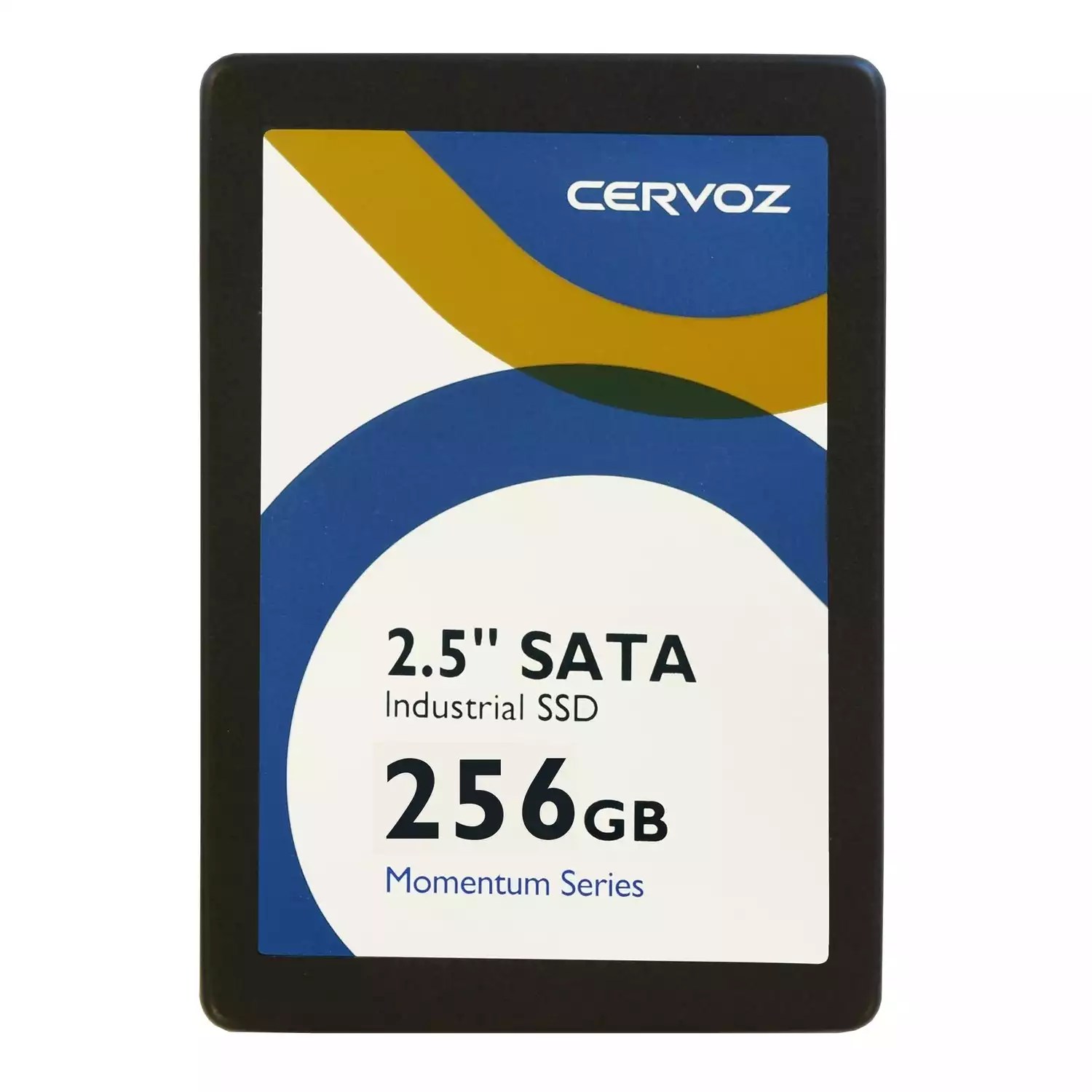

256GB Industrial 2.5″ SATA SSD M305

Wide Temperature

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: X47132510 Produktové číslo: CIS-2SM305MKB256GWKategorie: Výrobce: Cervoz
Poptat produkt

Cervoz Industrial 2.5″ SATA SSD M305 family is a high capacity Solid State Disk product that is in compliance with the 2.5″ form factor and SATA III standards. The device design is based on the 7pin for data segment and 15pin for power segment standards.M305 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes both standard temperature range and wide temperature range options with various capacities to choose from.M305 family offers outstanding performance and reliability; the product family is a perfect solution for price sensitive semi-industrial and general industrial applications.


  1. Compliant with SATA III 6.0Gb/s (backward compatible to 1.5Gb/s and 3Gb/s)
  2. MLC NAND flash memory
  3. Capacity: 16GB ~ 512GB
  4. Operating as boot disk
  5. Low power consumption
  6. Shock resistance and anti-vibration
  7. Static and dynamic wear leveling
  8. Bad block management
  9. S.M.A.R.T. & TRIM command
  10. Fully compatible with Windows XP, Windows 7, Windows 8, Windows 10, Mac OS, and Linux
  11. RoHS compliant


Form Factor2.5 inch
InterfaceSATA III 6.0Gb/s (backward compatible to 3.0Gb/s, 1.5Gb/s)
ConnectorSATA (7 + 15 pin)
NAND Flash TypeMLC
CapacityStandard Temp.: 16GB/32GB/64GB/128GB/256GB/512GB
Wide Temp.: 32GB/64GB/128GB/256GB
Sequential Readup to 520 MB/s
Sequential Writeup to 280 MB/s
ECC Schemeup to 66bits / 1K Byte
MTBF2,000,000 hours
Terabyte Written (TBW)16GB : 15.632GB : 3164GB : 63128GB : 125256GB : 250512GB : 500
Low Power ManagementDIPM / HIPM mode
Supply Voltage+5V DC +/- 5%
Power ConsumptionActive mode: < 3015mWIdle mode: < 280mW
Dimension (L x W x H)100.00*69.85*7.00mm
Weight55 +/- 1g
Hmotnost0,055 kg
Rozměry100 × 70 × 7 mm



2.5" SATA


256 GB

Provozní teplota
