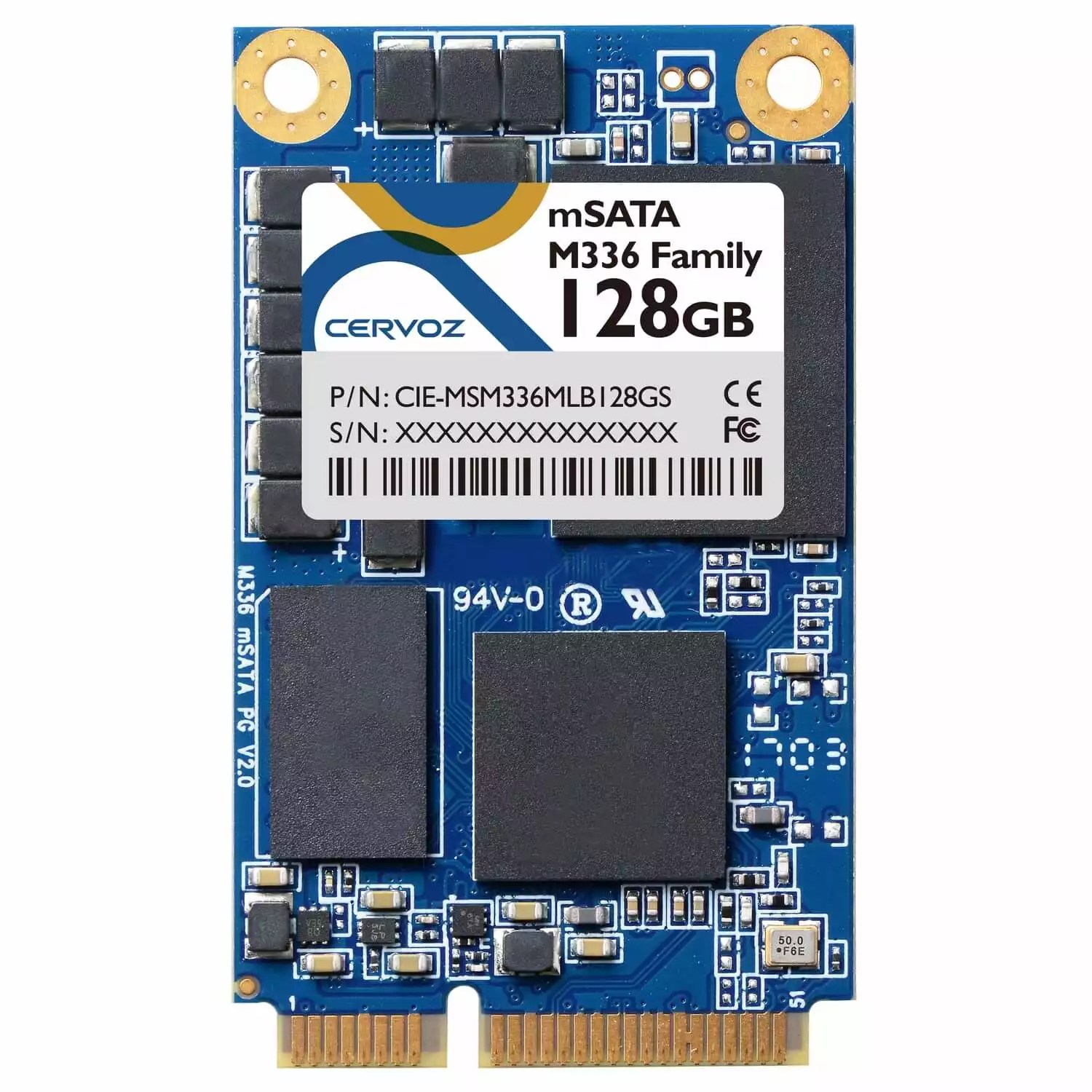

Cervoz Industrial mSATA Embedded Module M336 family is a Solid State Flash Disk product that is in compliance with the mSATA and SATA III standards. mSATA M336 family fits in any mSATA sockets in a PC or motherboard; it can be used for both booting and storage purposes. In addition, M336 family has a very unique function named Powerguard. The purpose of Powerguard is to protect data loss while encountering an improper power failure. Powerguard would complete the task of saving the boot files from the controller into the flash storage after sudden power loss. Cervoz designs these flash modules with additional tantalum capacitors to store these extra charges. With this special design, mSATA is constantly charging the tantalum capacitors with 12V power during its operation.
M336 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
Features:
- Compliant with SATA III 6.0Gb/s (backward compatible to 1.5Gb/s and 3Gb/s)
- MLC NAND flash memory
- Capacity: 32GB ~ 128GB
- With 16-bit wide DDR3 DRAM Buffer
- Operating as boot disk
- Product includes Standard Temperature range & Wide Temperature range
- Low power consumption
- Shock resistance and anti-vibration
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
- Fully compatible with Windows XP, Windows 7, Windows 8, Windows 10, Mac OS, and Linux
- RoHS compliant
Specifications:
| Form Factor | mSATA |
| Interface | SATA III 6.0Gb/s (backward compatible to 3.0Gb/s, 1.5Gb/s) |
| Connector | mSATA |
| NAND Flash Type | MLC |
| Capacity | 32GB/64GB/128GB |
| Sequential Read | up to 535MB/s |
| Sequential Write | up to 145MB/s |
| DDR3 DRAM Buffer | Included |
| ECC Scheme | up to 66bits / 1K Byte |
| MTBF | 2,000,000 hours |
| Terabyte Written (TBW) | 32GB : 31 64GB : 63 128GB : 125 |
| Low Power Management | DEVSLP mode DIPM/HIPM mode |
| Supply Voltage | +3.3V DC +/- 5% |
| Power Consumption | Active mode: < 1.7W Idle mode: < 45mW DEVSLP mode: < 5mW |
| Dimension (LxWxH) | 50.95*30.00*3.90mm |
| Weight | 7.8 +/- 1g |
