R15L100-SPC369

15″ Flat Stainless LCD, 1024×768, P-Cap Touch, IP69K

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW11532020 Produktové číslo: R15L100-SPC369Kategorie: Výrobce: Winmate
Poptat produkt

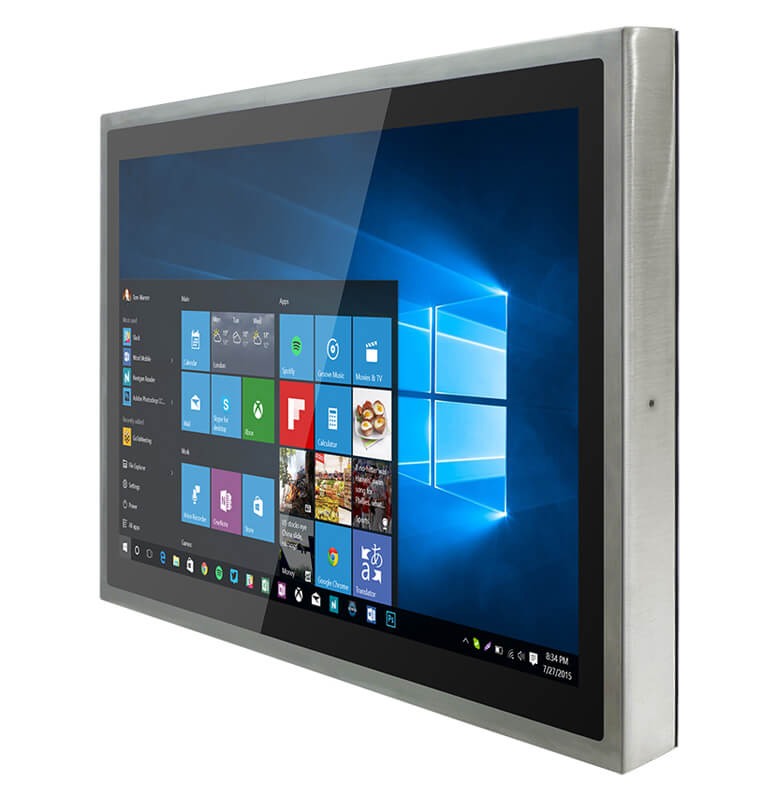

R15L100-SPC369 15-inch IP69K Flat Stainless P-CAP Display


Features

  • 15″, 1024×768, P-cap touch with flat design
  • Full IP69K waterproof enclosure, good corrosion resistance
  • SUS 304/ AISI 304 stainless steel for food and chemical industries
  • VGA, USB, DVI-D input
  • Supports VESA mount

  • Technical Description

    Model NameR15L100-SPC369
    Panel Size15″
    Active Display Area (mm)304.128 (H) x 228.096 (V)
    Pixel Pitch (mm)0.297 (H) x 0.297 (V)
    Resolution1024 x 768
    Panel Brightness250(typ.)
    Contrast Ratio700:1(typ.)
    Viewing Angle-80~80 (H); -70~70 (V)
    Number of Colors16.2M
    TouchProjected Capacitive Multi-Touch (Default), Non-touch Glass (Optional), Anti-glare Coating (Optional)

    Power Information

    Power Source12V DC in, with External AC to DC Adapter (100~240V AC)
    Power Consumption30W typical, normal operation

    Display Signals

    Plug & PlayVESA DDC 1/2B

    Environment & Certification

    Operating Temperature (°C)-10 ~ +55°C
    IP RatingIP69K, air venting valve

    I/O Specification

    I/O Connectors
  • 3-Pin power connector, waterproof
  • 10-Pin VGA connector, waterproof
  • DVI-D connector, waterproof (Optional)
  • USB connector, waterproof

  • Výrobce

    Winmate

    Dotyková technologie

    Kapacitní

    Rozlišení

    1024 x 768

    Stupeň krytí

    IP69K

    Úhlopříčka

    15-18"

    Datasheet

    Stáhnout datasheet:
