W22L100-SPA369

21.5″ Flat Stainless LCD, 1920×1080, P-Cap Touch, IP69K

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW11532040 Produktové číslo: W22L100-SPA369 Kategorie: Výrobce: Winmate
Poptat produkt

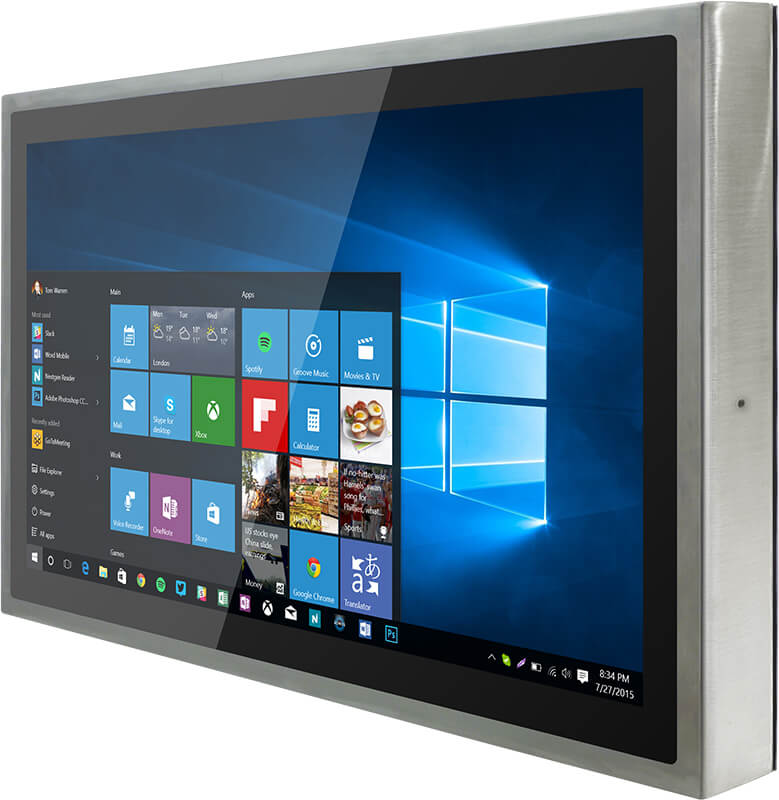

W22L100-SPA369 – 21.5-inch IP69K Flat Stainless P-Cap Display


Features

  • 21.5″, 1920 x 1080, P-cap touch with flat design
  • Full IP69K waterproof enclosure, good corrosion resistance
  • SUS304 stainless steel for food and chemical industries
  • VGA, USB, DVI-D input
  • Supports VESA mount

  • Technical Description

    Model NameW22L100-SPA369
    Panel Size21.5″ (16:9)
    Active Display Area (mm)476.64 (H) x 268.11 (V)
    Pixel Pitch (mm)0.248 (H) x 0.248 (V)
    Resolution1920 x 1080
    Panel Brightness250 (typ.)
    Contrast Ratio3000:1(typ.)
    Viewing Angle-89~89 (H) ; -89~89 (V)
    Number of Colors16.7M
    TouchProjected Capacitive Multi-Touch (Default)
    Non-touch glass (Optional)
    Anti-glare coating (Optional)

    Power Information

    Power Source12V DC in, with External AC to DC Adapter (100~240V AC)
    Power Consumption50W typical, normal operation

    Display Signals

    Plug & PlayVESA DDC 1/2B

    Environment & Certification

    Operating Temperature (°C)-10 ~ +55°C
    IP RatingIP69K, air venting valve

    I/O Specification

    I/O Connectors
  • 3-Pin power connector, waterproof
  • 10-Pin VGA connector, waterproof
  • DVI-D connector, waterproof (Optional)
  • USB connector, waterproof

  • Výrobce

    Winmate

    Dotyková technologie

    Kapacitní

    Rozlišení

    1920 x 1080

    Stupeň krytí

    IP69K

    Úhlopříčka

    19-22"

    Datasheet

    Stáhnout datasheet:
    Zpět nahoru
