R10L100-SPT269

10.4″ Flat Stainless LCD, 1024×768, P-Cap Touch, IP69K

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW11532010 Produktové číslo: R10L100-SPT269 Kategorie: Výrobce: Winmate
Poptat produkt

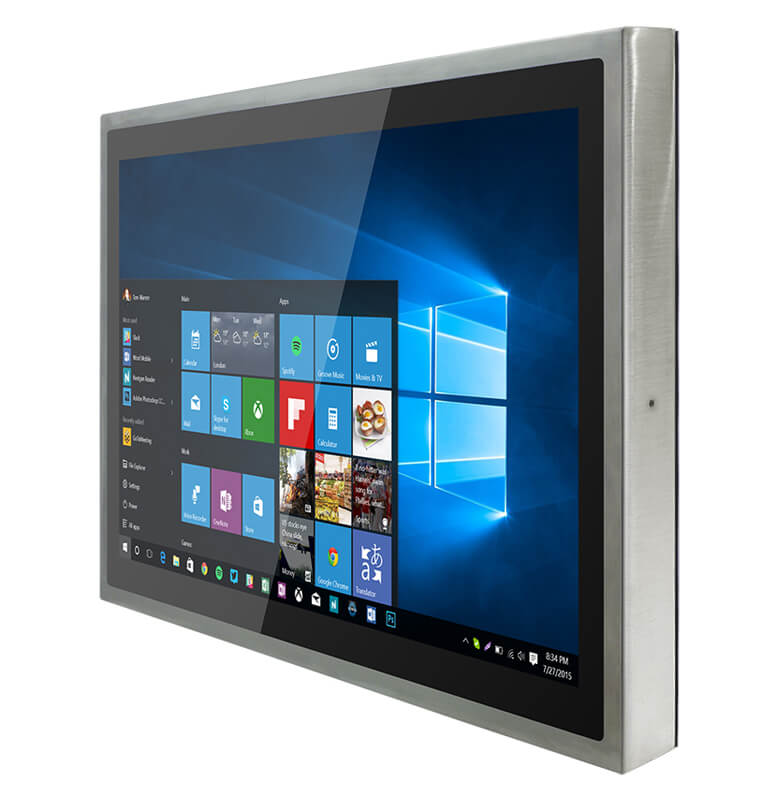

R10L100-SPT269-10.4-inch IP69K Flat Stainless P-CAP Display


Features

  • 10.4″, 1024×768, P-cap touch with flat design
  • Full IP69K waterproof enclosure, good corrosion resistance
  • SUS 316/ AISI 316 stainless steel for food and chemical industries
  • VGA, USB, DVI-D input
  • Supports VESA mount

  • Technical Description

    Model NameR10L100-SPT269
    Panel Size10.4″
    Active Display Area (mm)210.4 (H) x 157.8 (V)
    Pixel Pitch (mm)0.0685 (H) x 0.2055 (V)
    Resolution1024 x 768
    Panel Brightness350(typ.)
    Contrast Ratio1000:1(typ.)
    Viewing Angle-80~80 (H); -60~80 (V)
    Number of Colors16.2M
    TouchP-Cap (Default), Glass (Optional)

    Power Information

    Power Source12V DC in, with External AC to DC Adapter (100~240V AC)
    Power Consumption26W typical, normal operation

    Display Signals

    Plug & PlayVESA DDC 1/2B

    Environment & Certification

    Operating Temperature (°C)-10 ~ +55°C
    IP RatingIP69K, air venting valve

    I/O Specification

    I/O Connectors
  • 3-Pin power connector, waterproof
  • 10-Pin VGA connector, waterproof
  • DVI-D connector, waterproof (Optional)
  • USB connector, waterproof

  • Výrobce

    Winmate

    Dotyková technologie

    Kapacitní

    Rozlišení

    1024 x 768

    Stupeň krytí

    IP69K

    Úhlopříčka

    10-14"

    Datasheet

    Stáhnout datasheet:
