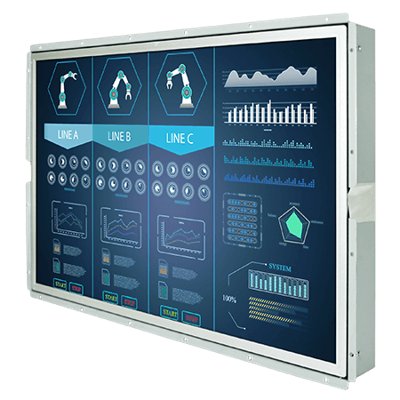

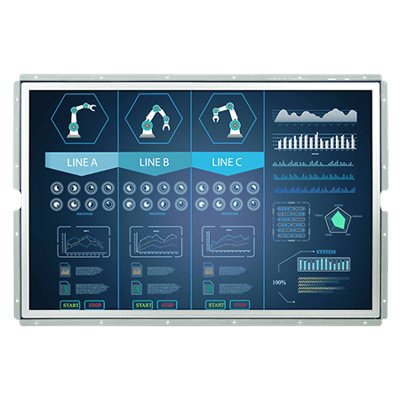

23.8" Open Frame Transflective Display
Vlastnosti:
- 23.8", 1920 x 1080
- VGA and HDMI input
- Open frame
- VESA mount
- Transflective
Display
Resolution | 1920×1080 |
Size | 23.8 inches |
Contrast Ratio | 3000:1 |
Panel Brightness | 250 nits |
Display Color | 16.7M Colors |
View Angles | 89,89,89,89 |
Active Area | 527.04×296.46 mm |
Touch / Glass | Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) SAW Touch (Surface Acoustic Wave) (Optional) |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB for Touch Screen (Optional) |
Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
Audio | Audio line in (3.5mm) (Optional) 2 x Speaker (Optional) |
Mechanical
Dimension | 576 x 343 x 58 mm |
Mounting | VESA Mount/ Rear Mount |
Enclosure | Metal |
Cooling System | Fanless Design |
Accessory
Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
Power Rating | 12V DC in |
Control
Button | 5 Keys: – , + , Power , Esc , Enter |
