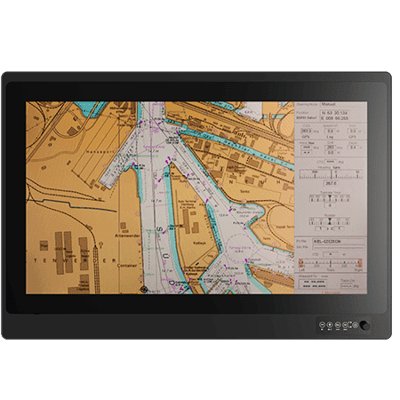

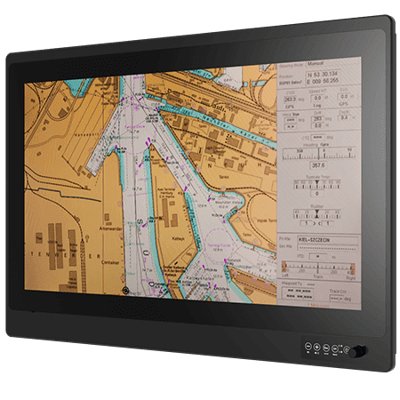

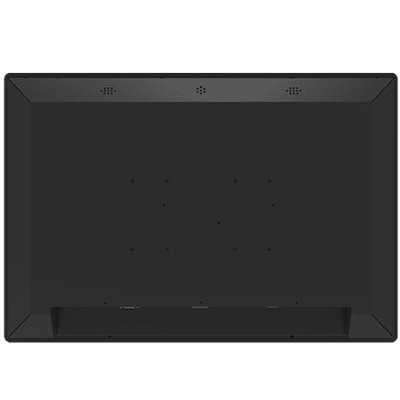

23.8” 4K UHD Marine Display
Vlastnosti:
- 23.8” 4K UHD with projective capacitive multi-touch screen
- Multi Video Output ,VGA+DVI+HDMI+DP
- 24V DC power input
- fanless cooling system
Display
Touch / Glass | Projected Capacitive Multi Touch Screen AR Glass (Optional) |
Resolution | 3840×2160 |
Size | 23.8 inches |
Contrast Ratio | 1200:1 |
Panel Brightness | 540 nits |
Display Color | 1.07B Colors |
View Angles | 89,89,89,89 |
Active Area | 525.65×295.70 mm |
Environment
Operating Humidity | 5% to 95% |
Operating Temperature | -15~55°C |
Shock | 15G,11ms duration |
Vibration | 0.7g@DNVGL CG-0339 (Class A) |
IP rating | IP66 (Front Side) |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB Type A |
Serial Port | 1 x RS232 for remote control |
Video | 1 x VGA 1 x DVI-D 1 x HDMI 1.4 1 x HDMI 2.0 1 x DP |
Mechanical
Dimension | 601 x 415 x 73.8 mm |
Mounting | VESA Mount/ Panel Mount |
Enclosure | Anodized Aluminum Bezel |
Cooling System | Fanless Design |
Cut out | 570 x 360 mm |
Power
Power Rating | 24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Acceptable |
Consumption | 75W (Typical) |
Accessory
Accessory | User Manual Quick Start Guide (Hardcopy) M4 x 12 Black Screw Bolts AC to DC Adapter Power Cord 3 Pin Terminal Block 1 x VGA cable 1 x DVI cable 1 x HDMI cable 1 x RS232 cable |
Optional Accessory | 1 x USB cable |
