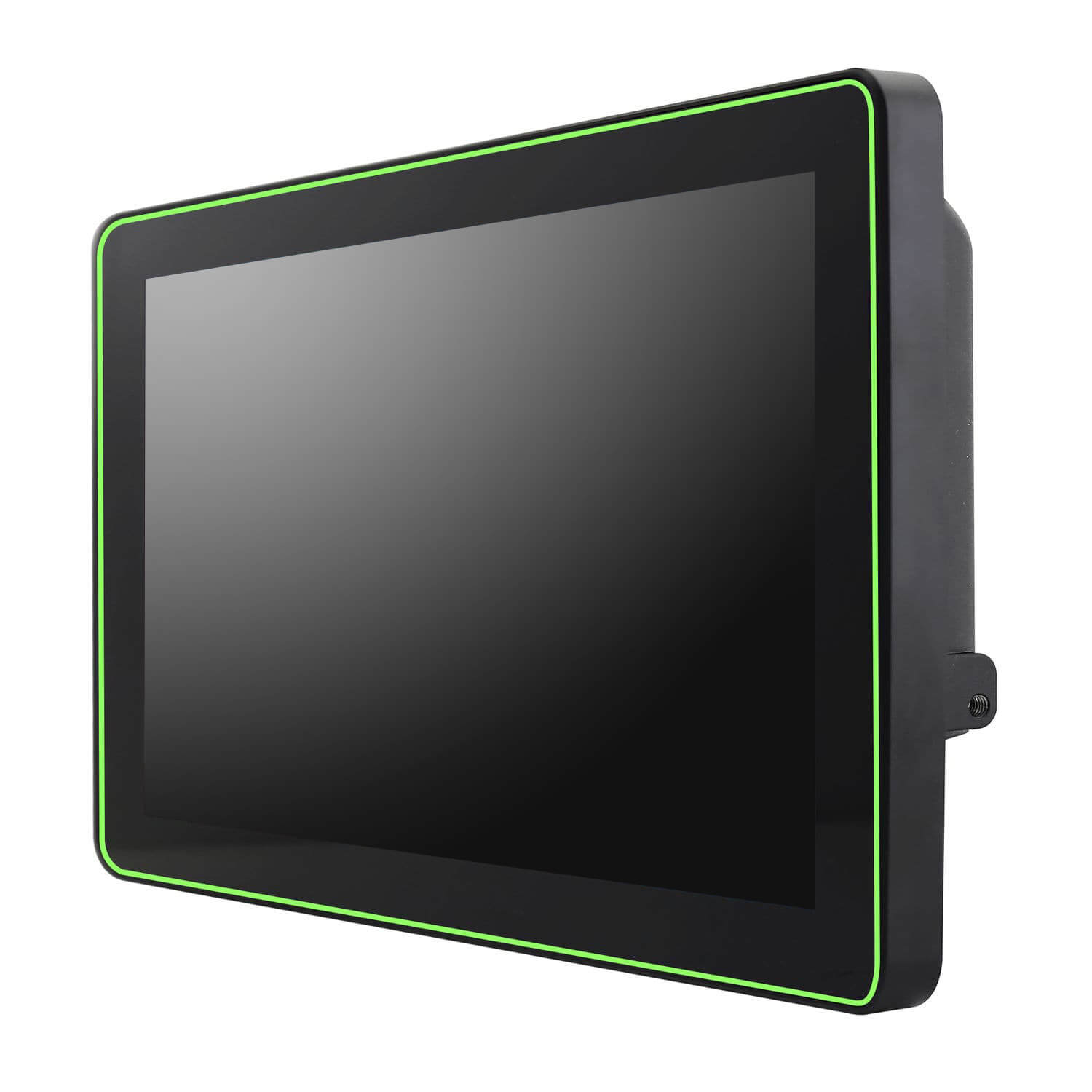

10.1″ LCD, 1280×800, P-Cap Touch, LED light bar, Front IP65

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW12810173 Produktové číslo: W10L100-PCH2LB Kategorie: , Výrobce: Winmate
Poptat produkt

Winmate P-Cap Chassis Display


Ľ 10.1″ 1280 x 800 Resolution with Projected Capacitive Multi-Touch (PCAP)
Ľ VGA and HDMI input
Ľ All-around LED status light bar (RS-232)
Ľ USB port for touch
Ľ Front IP65 waterproof and dustproof
Ľ Stylish design for room booking, access control and room information applications

Technical Description

Model NameW10L100-PCH2LB
Panel Size10.1″ TFT (Widescreen)
Resolution1280 x 800
Panel Brightness350(Typical)
Contrast Ratio800:1 (Typical)
Viewing Angle-85~85(H); -85~85(V)
Number of Colors16.7M (8 bits/color)
TouchProjected Capacitive Multi-Touch (PCAP), optional anti-glare coating
Touch interfaceUSB

Mechanical Description

Dimensions (W x L x H) (mm)263.28 x 171 x 35.7 mm
MountingVESA Mount (75 x 75 mm), Panel Mount, Front Side Wall Mount

Power Information

Power Source12V DC in, with External AC-DC Adapter(100~240V)
Power Consumption10W typical, normal operation

Display Signals

Video Input 1 x VGA (D-sub 15), 1 x HDMI (Type-A)
OSD User ControlOSD Control 5 Keys: – , + , Power , Esc , Enter

Environment & Certification

Operating Temperature (C)0~50C
Operating Humidity Range30% to 90% (non-condensing)
IP RatingFront IP65 waterproof and dustproof
Storage Temperature (C)-10~60 C

Type Approval, Testing and Certificates

Packing List

AccessoriesVGA cable (1.8m), HDMI cable (2m)

Rozměry 263 × 171 × 35 mm


Dotyková technologie



1280 x 800

Stupeň krytí

Front IP65
