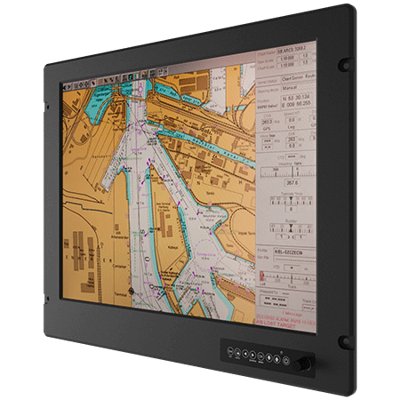

21.3" Marine Display
Vlastnosti:
- Dimming knob control backlight brightness from nearly 0% to 100%
- IP66 aluminum housing with powder coating design
- 24V DC Isolated Power Module
- High quality touchscreen / AR protection glass for option
- Ease of use front panel OSD control Marine Display
- Enhanced shock and vibration resistance
Display
Touch / Glass | Resistive Touch Screen AR Glass (Optional) |
Resolution | 1600×1200 |
Size | 21.3 inches |
Contrast Ratio | 1800:1 |
Panel Brightness | 1000 nits |
Display Color | 16.8M Colors |
View Angles | 89,89,89,89 |
Active Area | 432×324 mm |
Environment
Operating Humidity | 5% to 95% |
Operating Temperature | -15~55°C |
Shock | 15G,11ms duration |
Vibration | 0.7g@DNVGL CG-0339 (Class A) |
IP rating | IP66 (Front Side) |
Certification
Certification | CE, FCC |
IO Ports
Serial Port | 1 x RS232 for Remote Control 1 x RS232/USB for Touch Screen |
Video | 1 x VGA 1 x DVI-D 1 x Composite 1 x S-Video |
Mechanical
Dimension | 519 x 420 x 81.4 mm |
Mounting | VESA Mount/ Panel Mount |
Enclosure | Metal Housing with Aluminum Bezel |
Cooling System | Fanless Design |
Cut out | 480 x 396 mm |
Power
Power Rating | 24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Acceptable |
Consumption | 50W (Typical) |
Accessory
Accessory | 1 x User Manual. 1 x CD for Touchscreen Driver Tools. 1 x DVI Cable. 1 x VGA Cable. 1 x RS232 Serial Cable. 1 x S-Video Cable. 1 x Composite Cable. |
Control
Button | 8 key: Esc/PIP Auto adjustment Left Right/Source OK/Menu Up Down Power 1 x The Dimming Knob |
