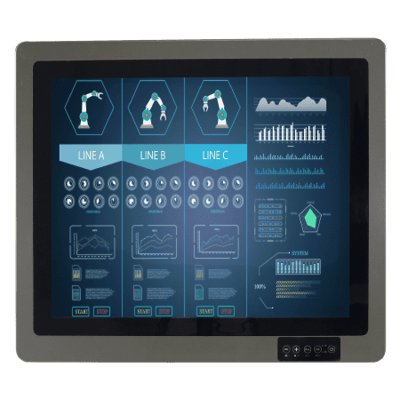

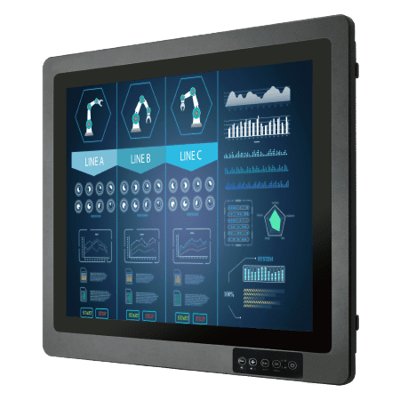

19" G-WIN IP67 Series Display
Vlastnosti:
- Totally sealed Full IP67 aluminum compact housing design
- 19-inch 1280 x 1024 panel with Projected Capacitive touch screen
- -10 to 55°C wide operating temperature
- Fanless, streamlined enclosure for highly efficient heat dissipation
- Rugged Front Anti-Impact Design
- Front control membrane keys lockable by software
- Full IP67 male connectors with external female cables
Display
Resolution | 1280×1024 |
Size | 19 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 400 nits 1000 nits(Optional) |
Display Color | 16.7M Colors |
View Angles | 85,85,80,80 |
Active Area | 376.32×301.06 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel |
Optional function | High brightness Panel for sunlight readable (Optional) |
Mechanical
Dimension | 474 x 410 x 111 mm |
Mounting | Panel mount VESA Mount |
Enclosure | Aluminum Housing |
Cooling System | Fanless design |
Cut out | 462 x 386mm |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | -10°C to 55°C -40°C to 70°C (with intelligent heater) |
Storage Temperature | -30°C to 70°C |
Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
Vibration | MIL-STD-810G Method 514.6 Procedure I |
IP rating | IP67 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x M12 waterproof connector for 9~36V DC |
USB Port | 1x M12 type connector for Touchscreen via USB signal |
Serial Port | 1 x M12 type connector for Touchscreen via RS232 signal (Optional) |
Video | 1x M12 type connector for VGA input 1x M21 type connector for HDMI input (Optional) |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for status |
Control
Button | 1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x OK (Menu) button |
Accessory
Accessory | External open wire Power cable with waterproof connector External USB cable with waterproof connector External VGA cable with waterproof connector Waterproof caps Mounting clips VESA screws |
Optional Accessory | 100~240V AC to DC Adapter with power cord (Optional) External COM cable with waterproof connector (Optional) External HDMI cable with waterproof connector (Optional) |
