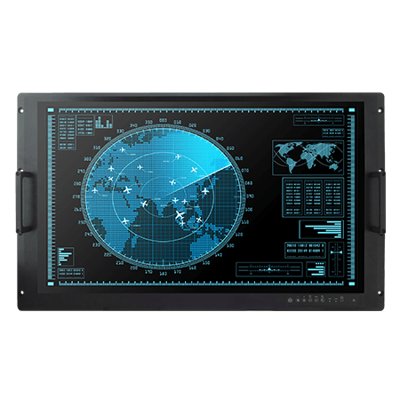

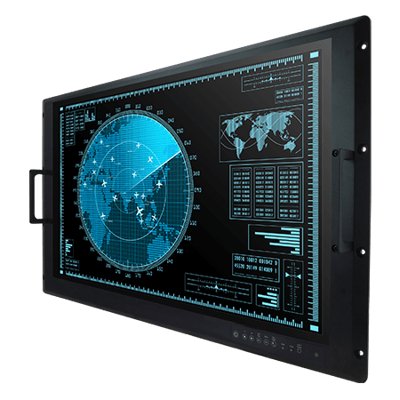

40" 4K2K UHD Defence Display
Vlastnosti:
- 40" 4K2K UHD Protective Glass Rack Mount Defence Display (3840 x 2160) native resolution
- Compliant MIL-STD 810G/ MIL-STD 461E
- Rack mount mechanical design, supports VESA mount
- AR protection glass
- Defence-grade power connector (MIL-DTL-38999/1)
- AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional)
- Convenient on-screen display controls
Display
Resolution | 3840×2160 |
Size | 40 inches |
Contrast Ratio | 5000:1 |
Panel Brightness | 350 nits |
Display Color | 1.07G (8-bit+FRC) Colors |
View Angles | 89,89,89,89 |
Active Area | 878.112 x 485.352 mm |
Touch / Glass | AR Protection Glass EMI ITO Glass (Optional) |
Environment
Operating Humidity | 10% to 95% RH |
Operating Temperature | 0~50°C |
Storage Temperature | -10°C~60°C |
Certification
Certification | CE, FCC |
Compliance
MIL-STD 461E/F | RE101 / RE102 CE101 / CE102 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
MIL-STD 810F/G | Vibartion Method 514.5 Humidity Method 507.4 Transit Drop Method516.5 |
IO Ports
Serial Port | 1 x RS232 for Remote Control (Optional) |
Video | 1 x VGA 1 x DVI 1 x Display Port 1.2 1 x HDMI 1.4 (Optional) 1 x HDMI 2.0 (Optional) |
Audio | 1 x Audio Line In (Optional) |
Mechanical
Dimension | 978.2 x 580.4 x 88.5 mm |
Mounting | VESA Mount/ Rack Mount |
Enclosure | Metal |
Cooling System | Fanless Design |
Accessory
Accessory | 1 x User Manual(Hardcopy) 1 x Power Cord MILDTL38999/1 1 x VGA Cable 1 x DVI Cable 2 x HDMI Cable 1 x DP Cable |
Optional Accessory | 1 x Auido cable |
Power
Power Rating | AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional) |
Control
Button | 7 key: Power Decrease Increase Exit/ Auto Menu Day/ Night Lock/ Unlock |
