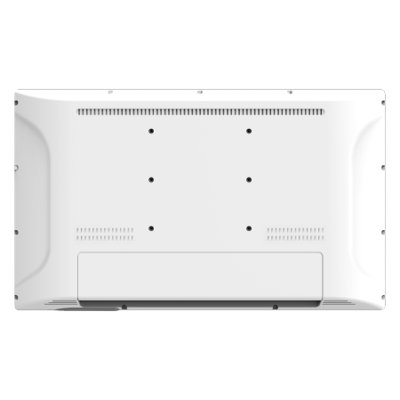

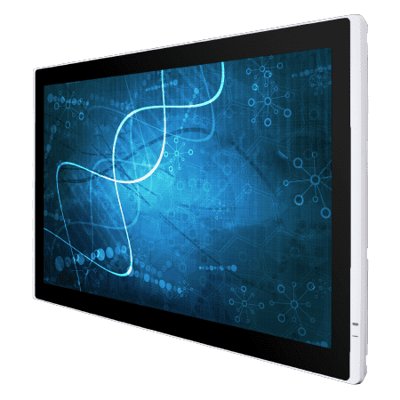

32" SDI Multi-Touch Color Surgical Display
Vlastnosti:
- 32” Display with 4K UHD (3840 x 2160) native resolution
- Projected Capacitive Touch
- Bottom side keys x 5
- Fanless and Ventless design, Easy-to-Clean
- Support 12G-SDI , HDMI (Optional) , DP variety signal input
- Front IP65
Display
Resolution | 3840×2160 |
Size | 32 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 350 nits |
Display Color | 1.07B Colors |
View Angles | 89,89,89,89 |
Active Area | 708.48 x 398.52 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
Environment
Operating Humidity | 10% to 90% RH, non-condensing |
Operating Temperature | 0°C to 35°C |
Storage Temperature | -20 °C to 60 °C |
Certification
Certification | CE, FCC |
Compliance
Compliance | IEC 60601-1:2005 + A1:2012 (Ed. 3.1) IEC 60601-1-6:2010 + A1:2013 (Ed. 3.1) IEC 62366:2007 + A1:2014 (Ed. 1.1) ANSI/AAMI ES60601-1:2005/A1:2012 and C1:2009/(R)2012 and A2:2010/(R)2012 CAN/CSA-C22.2 No.60601-1:14 EN 60601-1-2:2015, IEC 60601-1-2:2014 (Ed. 4.0) EN 55032/EN 55024, FCC part 15B EN 62368-1:2014 RoHS-2, REACH, WEEE compliant |
IO Ports
USB Port | 1 x USB for Touch Screen |
Serial Port | 1 x RS232 (Optional) |
Video | 1 x 12G-SDI In 1 x 12G-SDI Loop Out 1 x Display Port 1.2 1 x HDMI 1.4 (Optional) 1 x HDMI 2.0 (Optional) |
Audio | 2 x Speaker |
Mechanical
Dimension | 799 x 478 x 63.7 mm |
Mounting | VESA Mount |
Enclosure | Plastic |
Cooling System | Fanless Design |
Accessory
Accessory | User Manual (Hardcopy) 110~240V AC Power Adapter Power Cord Display Port Cable SDI Cable HDMI Cable USB Cable for Cable Remote Controller |
Optional Accessory | RS232 Cable (Optional) |
Power
Power Rating | 24V DC in |
Control
Button | 5 Keys: – , + , Power , Esc , Enter |
