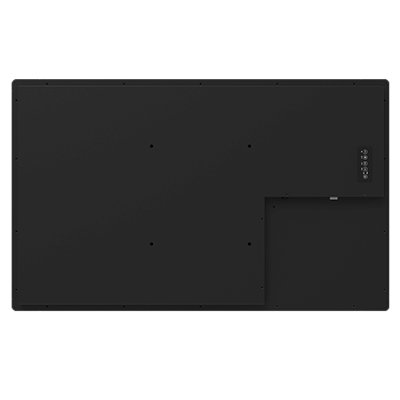

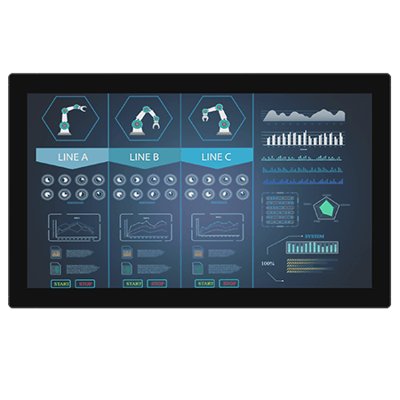

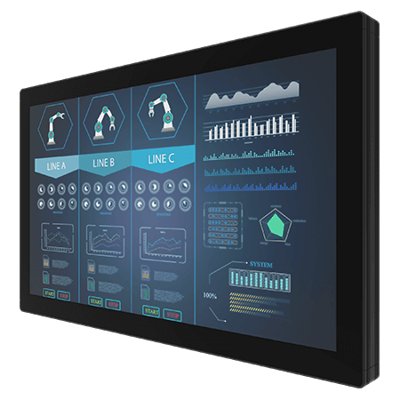

32" PCAP Touch Chassis Display
Vlastnosti:
- Sunlight readable with high brightness solution
- Support VESA mount
- Support PCAP touch
- Operating temperature:-10~60℃
- Optional operating temperature : -25~60℃ with heater solution
- Optional solar radiation protection with UV film for directed sunlight environment
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920×1080 |
| Size | 32.0 inches |
| Contrast Ratio | 4000:1 |
| Panel Brightness | 1500.0 nits |
| Display Color | 16.7M Colors |
| View Angles | 89,89,89,89 |
| Active Area | 698.4×392.85 mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA 1 x HDMI 1 x DVI(Optional) |
Mechanical
| Dimension | 777.4 x 477.5 x 48 mm |
| Mounting | VESA Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
Power
| Power Rating | 12V DC in 24V DC in (optional) |
Accessory
| Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
Control
| Button | 5 Keys: – , + , Power , Esc , Enter |
