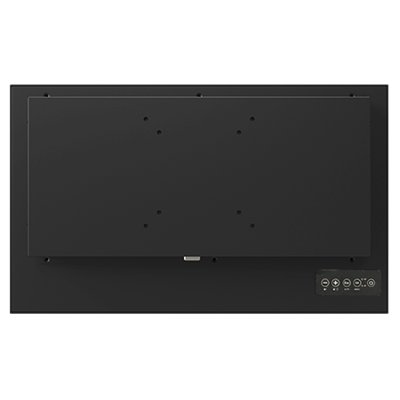

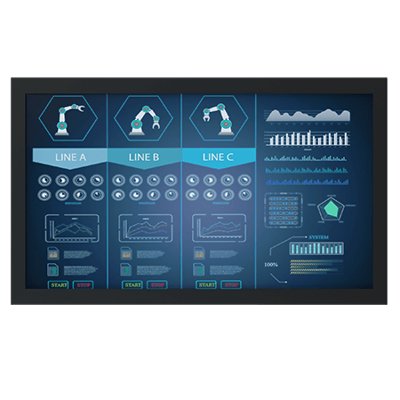

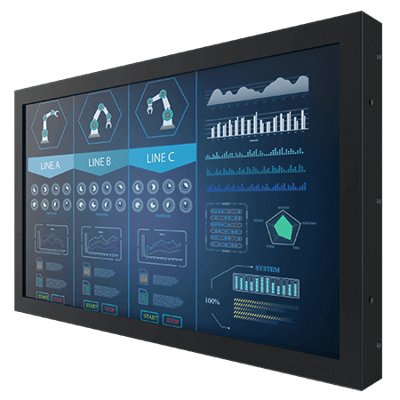

15.6" Resistive Touch Chassis Display
Vlastnosti:
- Sunlight readable with high brightness solution
- Support VESA mount
- Operating temperature:-10~60℃
- Optional operating temperature : -25~60℃ with heater solution
- Support resistive touch
- Optional solar radiation protection with UV film for directed sunlight environment
Display
Resolution | 1920×1080 |
Size | 15.6 inches |
Contrast Ratio | 800:1 |
Panel Brightness | 1000 nits |
Display Color | 16.2M Colors |
View Angles | 85,85,85,85 |
Active Area | 344.16×193.59 mm |
Touch / Glass | Resistive Touch Screen Protection Glass w/o Touch Function (Optional) |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | -10°C to 60°C |
Storage Temperature | -20°C to 70°C |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB for Touch Screen |
Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
Audio | Audio line in (3.5mm) (Optional) 2 x Speaker (Optional) |
Mechanical
Dimension | 372.3 x 225 x 55 mm |
Weight | 3.6 kg |
Mounting | VESA Mount |
Enclosure | Metal |
Cooling System | Fanless Design |
Accessory
Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
Power Rating | 12V DC in |
Control
Button | 5 Keys: – , + , Power , Esc , Enter |
