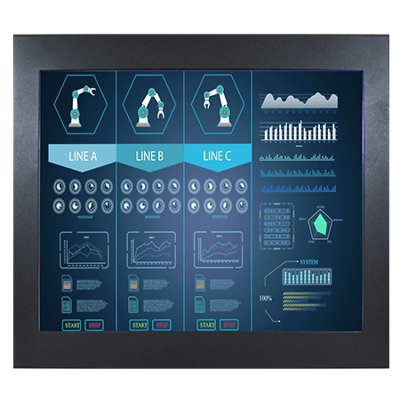

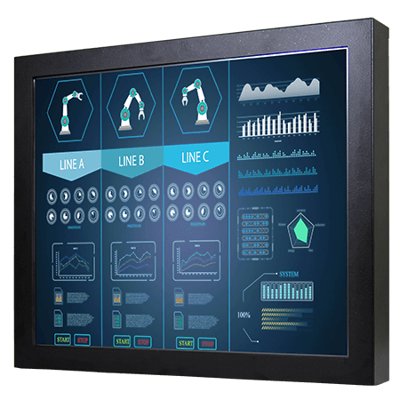

19" SDI Chassis Display
Vlastnosti:
- 19", 1280 x 1024 SDI Chassis Display
- G-SDI in, 3G-SDI out, HDMI, VGA, two CVBS (BNC)
- SDI Chassis Display
- VESA mount
Display
| Resolution | 1280×1024 |
| Size | 19.0 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 400 nits |
| Display Color | 16.7M Colors |
| View Angles | 85,85,80,80 |
| Active Area | 376.32×301.06 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
Environment
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA In 2 x CVBS 1 x SDI in 1 x SDI out 1 x HDMI (Optional) |
| Audio | 2 x Speaker (Optional) |
Mechanical
| Dimension | 438.7 x 363.5 x 38.5 mm |
| Mounting | VESA Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
Accessory
| Accessory | User Manual(Hardcopy) Black Screw Bolts 110~240V AC Power Adapter Power Cord VGA Cable HDMI Cable SDI Cable CVBS cable |
Power
| Power Rating | 12V DC input |
Control
| Button | 8 key: Power Up Down Menu/Enter Left Right Exit Auto |
